Product Description

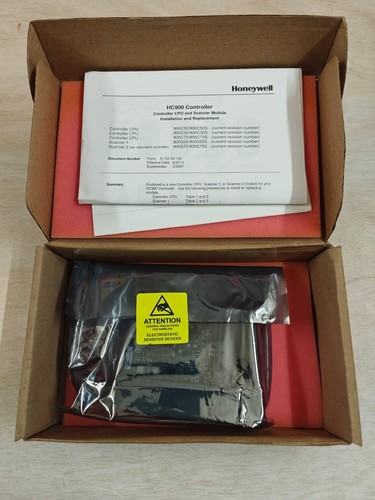

The Honeywell 900S50S-0360-00 is a 1-port I/O Scanner module for the HC900 Process and Safety Controller platform. It is installed in a remote I/O rack and provides the communication link between the controller and the I/O modules in that rack. The scanner collects input data from the rack, sends output data from the controller to the appropriate output modules, and reports I/O diagnostic information. Honeywell documentation specifies a private 10/100 Base-T Ethernet connection between the Scanner 1 and the controller, with data exchange synchronized to the controller scan cycle for deterministic operation. The 900S50S-0360-00 is the SIL version of the one-port scanner.

Product Parameters

Item	Specification
Brand	Honeywell
Model	900S50S-0360-00
Product Family	HC900 / ControlEdge HC900
Product Type	1-Port I/O Scanner Module
Scanner Type	Scanner 1
Application	Remote I/O Communication
Port	1 × Private Ethernet Port
Ethernet	10/100 Base-T
Communication	IEEE 802.4 Ethernet Physical Layer
Installation	Remote I/O Rack
Function	I/O Data Scanning and Controller Communication
Diagnostic Function	I/O Module Status Monitoring
SIL Compatibility	SIL System
Power Loading	5 VDC, 770 mA maximum
Status	Legacy / Existing-System Replacement Component
Condition	Verify actual stock condition before installation

FAQ

Q: What is the Honeywell 900S50S-0360-00?

A: It is the SIL version of the HC900 Scanner 1 module, providing a one-port connection between the controller and a remote I/O rack.

Q: How many communication ports does it have?

A: The 900S50S Scanner 1 has one private 10/100 Base-T Ethernet port. The two-port Scanner 2 is the 900S75/900S75S family.

Q: What does the scanner do?

A: It collects data from input modules, transfers controller output data to output modules, and communicates diagnostic status back to the controller.

Q: Where is the 900S50S installed?

A: It is installed in an HC900 remote I/O rack and communicates with the controller through the I/O expansion connection.

Q: Is 900S50S-0360-00 compatible with the standard 900S50-0360-00?

A: Both are Scanner 1 modules, but 900S50S-0360-00 is specifically identified as the SIL version. Compatibility should therefore be confirmed against the complete HC900 system configuration before replacement.
