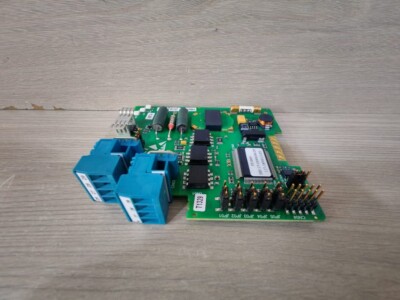

Honeywell Enraf RHBBVR-AES0605 HMI-TSI Printed Circuit Board – Smart Radar Interface Module
Product Overview
The HMI-TSI Printed Circuit Board is a high-performance interface module designed for Honeywell Enraf RHBBVR-AES0605 Smart Radar systems. It serves as the central processing and communication board for HMI (Human Machine Interface) operations, facilitating precise radar data visualization, signal processing, and integration with control systems. This board ensures reliable operation in industrial environments, offering advanced monitoring and diagnostics for level measurement, tank management, and process automation.
Key Features
- Smart Radar Interface: Fully compatible with RHBBVR-AES0605 Smart Radar sensors.
- HMI Integration: Provides real-time data display and user interaction through the connected HMI panel.
- Signal Processing: Advanced digital processing ensures accurate and reliable radar measurements.
- Communication Capabilities: Supports MODBUS, Ethernet, and serial communication for integration with SCADA/DCS systems.
- Robust Design: Industrial-grade PCB components withstand high humidity, temperature variations, and EMI environments.
- Diagnostics & Maintenance: Built-in diagnostic functions for troubleshooting and predictive maintenance.
- Compact & Modular: Easy to install, replace, and upgrade within existing systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HMI-TSI / RHBBVR-AES0605 |
| Function | Smart Radar HMI Interface PCB |
| Input Voltage | 24VDC / 250VAC (depending on installation) |
| Communication Protocols | MODBUS RTU, MODBUS TCP/IP, Ethernet |
| Digital Inputs | 8 Configurable |
| Digital Outputs | 6 Configurable |
| Analog Inputs | 4 (0–10V / 4–20mA) |
| Analog Outputs | 2 (0–10V / 4–20mA) |
| Operating Temperature | -20°C to +70°C |
| Protection | Surge, overvoltage, EMI/RFI hardened |
| Dimensions (HxWxD) | 120 x 90 x 40 mm |
| Weight | 0.8 kg |
| Mounting | Panel mount or DIN rail compatible |
| Origin | The Netherlands |
Applications
The HMI-TSI Printed Circuit Board is suitable for:
- Tank level monitoring and measurement systems
- Oil & gas storage and transfer facilities
- Chemical and petrochemical process automation
- Industrial SCADA/DCS integration for Smart Radar sensors
- Marine and offshore radar applications
- Water and wastewater level management systems
Operation & Usage Instructions
- Installation: Mount the HMI-TSI board in the radar controller enclosure or HMI panel. Connect 24VDC or 250VAC power supply as per wiring diagram.
- Configuration: Use the HMI software to configure input/output signals, communication parameters, and measurement scaling.
- Integration: Connect the board to RHBBVR-AES0605 radar sensors and control systems via MODBUS or Ethernet.
- Monitoring: Use HMI to visualize real-time level data, alarms, and system status.
- Maintenance: Review diagnostic logs, check board connections, and perform firmware updates if needed.
Technical Description
The HMI-TSI PCB serves as the interface between Smart Radar sensors and HMI panels, converting high-speed radar signals into usable process data. It provides advanced processing, signal filtering, and error detection to ensure accurate level measurements under challenging conditions. Its modular design allows easy replacement and upgrades, while communication support ensures seamless integration with SCADA/DCS systems for industrial automation and process control.
Recommended Honeywell Enraf Smart Radar Models
| No. | Model | Function | Communication |
|---|---|---|---|
| 1 | RHBBVR-AES0505 | Smart Radar Level Sensor | MODBUS / Ethernet |
| 2 | RHBBVR-AES0605 | Smart Radar Level Sensor | MODBUS / Ethernet |
| 3 | RHBBVR-AES0705 | High Precision Radar | MODBUS / Ethernet |
| 4 | RHBBVR-AES0805 | Industrial Radar Sensor | MODBUS RTU |
| 5 | RHBBVR-AES0905 | Tank Level Radar | MODBUS / TCP |
| 6 | RHBBVR-AES1005 | Process Radar | MODBUS RTU / TCP |
| 7 | RHBBVR-AES1105 | Marine Radar | MODBUS RTU |
| 8 | RHBBVR-AES1205 | Offshore Radar Sensor | MODBUS / TCP |
| 9 | RHBBVR-AES1305 | HMI Interface PCB | MODBUS / Ethernet |
| 10 | RHBBVR-AES1405 | Smart Radar Controller | MODBUS / TCP |
| 11 | RHBBVR-AES1505 | Chemical Radar Sensor | MODBUS / Ethernet |
| 12 | RHBBVR-AES1605 | Storage Tank Radar | MODBUS RTU |
| 13 | RHBBVR-AES1705 | High-Temperature Radar | MODBUS / TCP |
| 14 | RHBBVR-AES1805 | Water Treatment Radar | MODBUS RTU |
| 15 | RHBBVR-AES1905 | Level Measurement Module | MODBUS / Ethernet |
| 16 | RHBBVR-AES2005 | HMI-TSI Controller | MODBUS / Ethernet |
| 17 | RHBBVR-AES2105 | Process Automation Radar | MODBUS TCP |
| 18 | RHBBVR-AES2205 | Multi-Tank Radar | MODBUS RTU / TCP |
| 19 | RHBBVR-AES2305 | Hybrid Radar Sensor | MODBUS / Ethernet |
| 20 | RHBBVR-AES2405 | Industrial HMI PCB | MODBUS / TCP |
