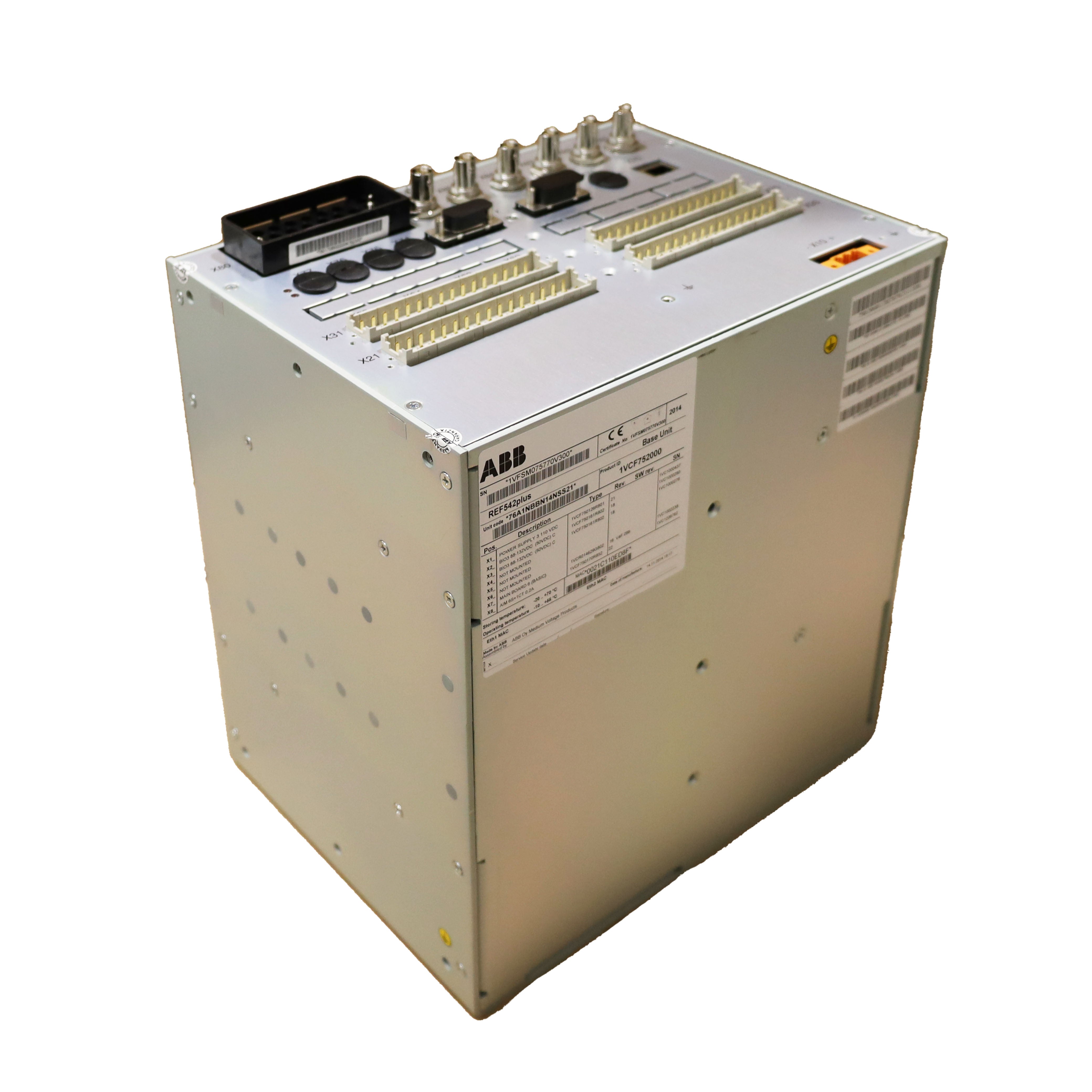

ABB REF542PLUS 1VFSE09152V201 / 1VCF752000 Base Unit

Product Overview

The ABB REF542PLUS Base Unit is a high-performance numerical protection relay designed for medium-voltage power distribution systems. It integrates advanced protection, control, and monitoring functions in a single modular unit. Optimized for flexibility and reliability, the REF542PLUS ensures secure operation of electrical networks while simplifying configuration and maintenance.

---

Key Features

• Comprehensive Protection: Overcurrent, earth-fault, voltage, frequency, and breaker failure protection.
• Modular Design: Base unit supports communication, I/O, and measurement modules for scalable applications.
• Advanced Monitoring: Real-time measurement, event recording, and disturbance recording capabilities.
• Communication Interfaces: Supports IEC 61850, Modbus, DNP3, Profibus, and other industry-standard protocols.
• User-Friendly Interface: Graphical HMI and PC-based configuration tools for easy setup and operation.
• High Reliability: Rugged construction with wide temperature tolerance and long operational lifespan.
• Power Supply: Redundant DC supply supported for enhanced reliability.

---

Technical Specifications

Parameter	Specification
Model Number	1VFSE09152V201 / 1VCF752000
Type	Numerical Protection Relay (Base Unit)
Protection Functions	Overcurrent, Earth Fault, Voltage, Frequency, Breaker Failure
Rated Voltage	100–240VDC (with internal DC/DC)
I/O Modules Supported	Digital Inputs, Digital Outputs, Analog Inputs/Outputs
Communication Protocols	IEC 61850, Modbus RTU/TCP, DNP3, Profibus
Measurements	Voltage, Current, Power, Energy, Harmonics
Display	Graphical LCD for front panel display
Operating Temperature	-25°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	5% – 95% non-condensing
Dimensions (HxWxD)	250 mm x 150 mm x 120 mm
Weight	2.5 kg
Certifications	CE, UL, IEC standards
Origin	Switzerland
Mounting	Panel Mount / DIN Rail

---

Applications

The ABB REF542PLUS Base Unit is suitable for medium-voltage power systems across various industries:

• Power Distribution: Protection and monitoring of substation feeders.
• Industrial Plants: Safeguards critical electrical infrastructure in manufacturing, mining, and processing facilities.
• Renewable Energy: Integration with wind, solar, and hybrid power plants.
• Utilities: Ensures reliable supply and fault detection in urban and rural networks.
• Oil & Gas: Protects electrical distribution networks in refineries and offshore platforms.

---

Usage Instructions

1. Installation: Mount the base unit securely in the control panel or cubicle. Connect power supply, communication cables, and I/O modules according to the wiring diagram.
2. Startup: Power up the device. The LCD displays system status and initial diagnostic results.
3. Configuration: Use ABB PCM600 or web-based configuration tools to program protection settings, assign I/O modules, and set communication parameters.
4. Operation: The unit continuously monitors electrical parameters, triggers protection actions, and records events. Users can interact via HMI or remote SCADA systems.
5. Maintenance: Regularly inspect wiring and connections. Firmware updates and diagnostic checks are recommended for optimal reliability.

---

Technical Notes

• Supports flexible module expansion for additional I/O and communication protocols.
• Event and disturbance recording allow detailed fault analysis.
• Compatible with most ABB medium-voltage switchgear and breakers.
• Redundant power supply options increase operational reliability.
• Designed for harsh environments, including high humidity, vibration, and temperature fluctuations.

---

Recommended ABB REF542PLUS Models

Model Number	Description	Communication	Notes
1VFSE09152V201	Base Unit	IEC 61850	Standard medium-voltage relay
1VCF752000	Base Unit	Modbus	Standard configuration
1VFSE09152V202	Base Unit	DNP3	Enhanced communications
1VCF752001	Base Unit	Profibus	Industrial automation integration
1VFSE09152V203	Base Unit	IEC 61850	High-speed protection
1VCF752002	Base Unit	Modbus TCP	Remote SCADA ready
1VFSE09152V204	Base Unit	DNP3	Advanced event recording
1VCF752003	Base Unit	IEC 61850	Redundant supply support
1VFSE09152V205	Base Unit	Modbus RTU	Compact substation use
1VCF752004	Base Unit	Profibus	Panel mount optimized
1VFSE09152V206	Base Unit	DNP3	Harmonic measurement included
1VCF752005	Base Unit	IEC 61850	Breaker failure protection
1VFSE09152V207	Base Unit	Modbus TCP	Expanded I/O support
1VCF752006	Base Unit	DNP3	Event logging upgrade
1VFSE09152V208	Base Unit	IEC 61850	Multi-language HMI
1VCF752007	Base Unit	Modbus RTU	Enhanced LCD display
1VFSE09152V209	Base Unit	Profibus	Renewable energy optimized
1VCF752008	Base Unit	DNP3	Industrial plant integration
1VFSE09152V210	Base Unit	IEC 61850	Remote firmware update ready
1VCF752009	Base Unit	Modbus TCP	Utility network applications
