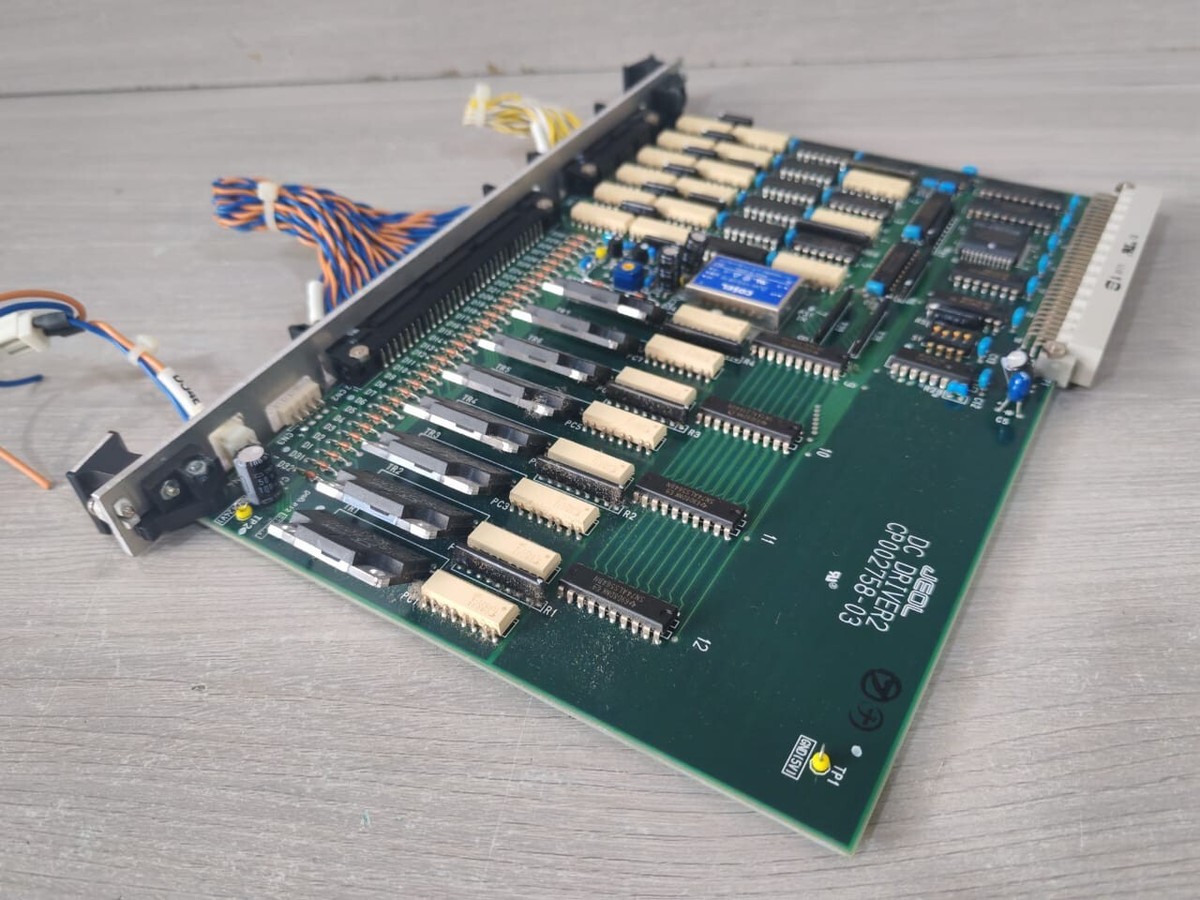

JEOL CP002758-03
DC Driver2 Control Board
Product Overview
The JEOL CP002758-03 DC Driver2 Control Board is a precision industrial electronic control board designed for JEOL analytical and imaging equipment. It provides accurate DC motor drive control, signal regulation, and system coordination to ensure stable and precise mechanical movement within high-precision instruments. Engineered for long-term reliability, this control board supports consistent performance in demanding laboratory and industrial environments.
Key Features
- Precision DC motor drive control
- Stable speed and torque regulation
- High reliability for continuous operation
- Low electrical noise for sensitive instruments
- Seamless integration with JEOL systems
- Industrial-grade PCB construction
Product Datasheet (Technical Specifications)
| Parameter | Specification |
|---|---|
| Part Number | CP002758-03 |
| Product Type | DC Driver Control Board |
| Control Function | DC Motor Speed and Torque Control |
| Drive Channels | 2 (Driver2 configuration) |
| Input Voltage | 24 VDC (nominal) |
| Output Type | PWM-controlled DC output |
| Control Interface | Internal system bus / control signals |
| Protection Functions | Overcurrent, Overvoltage |
| Board Construction | Multilayer industrial PCB |
| Cooling Method | Natural convection |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | –20°C to +70°C |
| Relative Humidity | 5–95% non-condensing |
| Mounting Type | Chassis or rack mounted |
| Compatibility | JEOL analytical equipment |
| Origin | Japan |
Applications
The JEOL CP002758-03 DC Driver2 Control Board is commonly used in precision systems requiring controlled motion:
- Electron Microscopes – Sample stage and component positioning
- Analytical Instruments – Motorized mechanisms and drive control
- Laboratory Automation Equipment – Precision movement systems
- Scientific Research Devices – Stable and low-noise motor operation
- Industrial Inspection Systems – Controlled mechanical actuation
Product Usage Instructions
- Installation: Power down the system before installation. Secure the control board in its designated slot or mounting position.
- Connection: Attach motor leads and control connectors according to system configuration.
- Power-On: Restore system power and verify proper initialization.
- Operation: The board automatically manages DC motor drive based on system commands.
- Maintenance: Periodically inspect connectors and board condition for dust or wear.
Technical Description
The CP002758-03 DC Driver2 Control Board employs high-precision PWM control technology to regulate DC motor speed and torque accurately. Its low-noise design ensures compatibility with sensitive electronic instruments, while built-in protection circuits safeguard both motors and control electronics. The board’s robust construction supports long-term stability and precise motion control in advanced analytical systems.
Recommended JEOL Control & Driver Boards
| Model Number | Board Type | Function |
|---|---|---|
| CP002758-03 | DC Driver Board | Dual DC motor control |
| CP002740-01 | Driver Control Board | Precision motor drive |
| CP002745-02 | DC Driver Board | Single motor control |
| CP002760-01 | Control Board | System coordination |
| CP002762-02 | Driver Board | Motion regulation |
| CP002770-01 | Control PCB | Instrument control |
| CP002775-02 | Driver Board | Motor actuation |
| CP002780-01 | Control Board | Speed regulation |
| CP002785-02 | Driver PCB | Precision movement |
| CP002790-01 | DC Driver Board | Stable torque control |
| CP002795-02 | Control Board | System logic |
| CP002800-01 | Driver Control PCB | Motor drive |
| CP002805-02 | DC Driver Board | Motion control |
| CP002810-01 | Control Board | Instrument interface |
| CP002815-02 | Driver PCB | DC motor control |
| CP002820-01 | Control Board | Mechanical positioning |
| CP002825-02 | Driver Board | Low-noise operation |
| CP002830-01 | Control PCB | System drive |
| CP002835-02 | DC Driver Board | Precision actuation |
| CP002840-01 | Control Board | Instrument automation |
