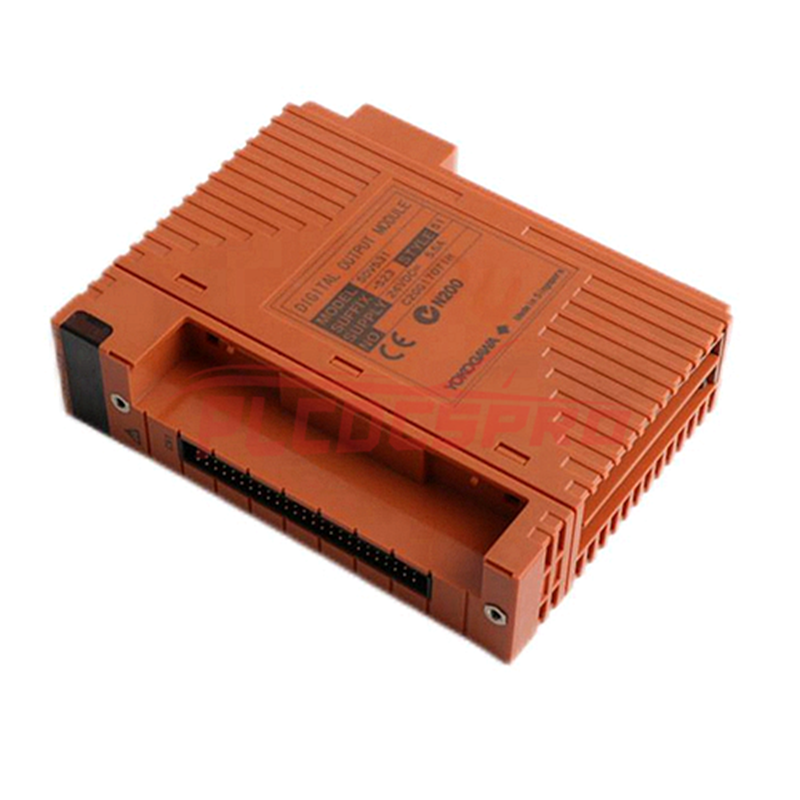

Yokogawa SDV531-L23-S4 Digital Output Module

Product Overview

The Yokogawa SDV531-L23-S4 Digital Output Module is a high-performance I/O module designed for Yokogawa DCS (Distributed Control System) applications. This module provides reliable digital output channels for controlling actuators, relays, and other field devices. Engineered for industrial automation environments, it delivers fast, deterministic switching, robust electrical isolation, and long-term operational stability.

✔ Industrial-grade digital output module
✔ Fast, reliable signal switching
✔ Compatible with Yokogawa DCS systems
✔ Designed for continuous 24/7 industrial operation

---

Product Parameters & Datasheet

Parameter	Description
Manufacturer	Yokogawa
Model	SDV531-L23-S4
Product Type	Digital Output Module
Number of Channels	8–16 (system configurable)
Output Type	Relay or transistor output (digital)
Output Voltage	24 VDC standard (system dependent)
Max Output Current	0.5–2 A per channel (depending on load type)
Interface	Yokogawa I/O backplane connection
Isolation	Channel-to-channel and channel-to-backplane electrical isolation
Operating Temperature	0°C to +55°C
Storage Temperature	-20°C to +70°C
Humidity	5–95% non-condensing
Mounting	Plug-in module for Yokogawa rack/chassis
Protection	Short-circuit and overload protection
Origin	Japan

---

Applications

The SDV531-L23-S4 Digital Output Module is used in:

• Industrial process automation
• Distributed control systems (DCS)
• Oil & gas process plants
• Power generation systems
• Water and wastewater treatment facilities
• Chemical and petrochemical plants

It enables reliable actuator control, valve switching, and discrete device operation in critical process environments.

---

Installation & Usage Instructions

1. System Power Down
   Ensure the Yokogawa DCS rack is powered off before installation.
2. Module Insertion
   Insert the module into the designated backplane slot, ensuring proper alignment.
3. Electrical Connection
   Connect the output terminals to the field devices, observing correct polarity.
4. Power-Up
   Restore system power and allow the module to initialize.
5. Functional Verification
   Check channel outputs through the DCS software or field testing.
6. Maintenance
   Periodically inspect connectors and wiring, and ensure environmental conditions are within specification.

---

Technical Description

The SDV531-L23-S4 features:

• High-speed digital switching for fast process response
• Robust electrical isolation to protect the DCS from field disturbances
• Industrial-grade components for long-term durability
• Integration-ready design for Yokogawa DCS backplanes
• Diagnostic capability for channel health monitoring

This design ensures precise, dependable control of field devices in demanding industrial operations.

---

Recommended Yokogawa I/O Modules

Model	Type	Description
SDV531-L22-S3	Digital Output Module	Standard relay output
SDV531-L24-S5	Digital Output Module	High-speed transistor output
SDV532-L23-S4	Digital Input Module	Discrete signal input
SDV533-L23-S4	Analog Input Module	4–20 mA input signals
SDV534-L23-S4	Analog Output Module	4–20 mA output signals
SDV535-L23-S4	Relay Output Module	High-current switching
SDV536-L23-S4	Temperature Input Module	RTD/PT100 input
SDV537-L23-S4	Pressure Input Module	Process pressure input
SDV538-L23-S4	Flow Input Module	Flow sensor input
SDV539-L23-S4	Communication Module	Fieldbus/Ethernet interface
SDV540-L23-S4	High-Speed Output Module	PWM control
SDV541-L23-S4	Safety Output Module	Interlock signals
SDV542-L23-S4	Logic Interface Module	Control logic I/O
SDV543-L23-S4	Expansion Module	Additional I/O channels
SDV544-L23-S4	Diagnostic Module	Channel health monitoring
SDV545-L23-S4	Memory Module	Retained configuration data
SDV546-L23-S4	Analog Expansion Module	Extended analog outputs
SDV547-L23-S4	Isolated Output Module	Electrical isolation for critical loads
SDV548-L23-S4	Mixed I/O Module	Combined analog/digital channels
SDV549-L23-S4	Replacement Module	Service spare unit
