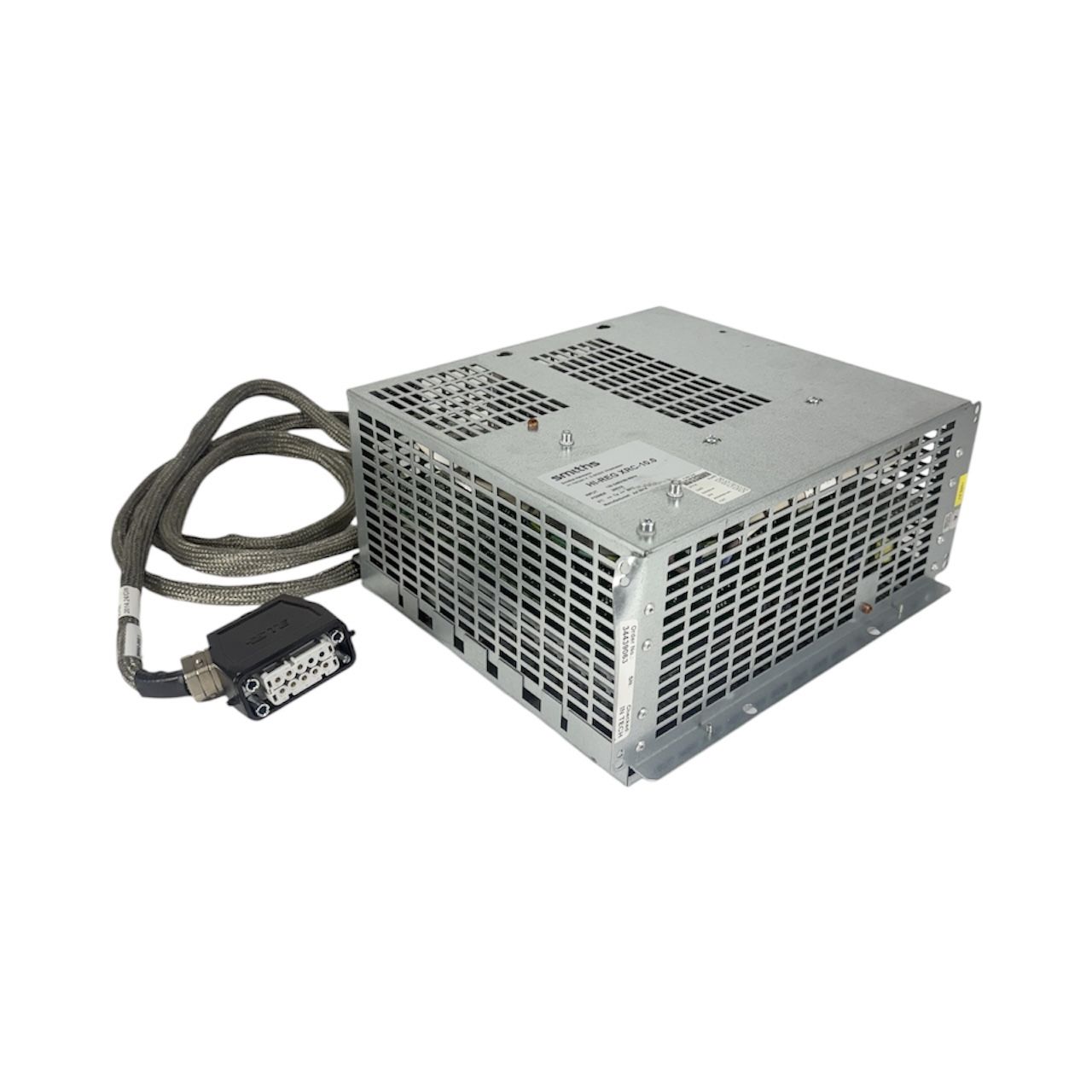

SMITHS HEIMANN HI-REG XRC-10.0 Power Supply

---

Product Overview

The Smiths Heimann HI-REG XRC-10.0 is an industrial-grade power supply designed to deliver stable and precise DC power to critical electronic and automation systems. Known for its high reliability, efficiency, and compact design, the XRC-10.0 is ideal for applications requiring continuous, regulated power under variable load conditions.

Engineered with robust internal circuitry and protective features, this power supply ensures long-term performance in industrial, laboratory, and control system environments.

---

Key Features

• High-precision regulated DC output
• Compact and robust industrial design
• Input: Wide AC voltage range for flexible installation
• Output: Stable DC voltage under varying load conditions
• Integrated protection: Overcurrent, overvoltage, and thermal shutdown
• Easy panel or rack-mount installation
• Suitable for continuous operation in industrial environments

---

Product Parameters & Datasheet

Parameter	Specification
Model	HI-REG XRC-10.0
Product Type	Industrial Power Supply
Input Voltage	100–240VAC, 50/60Hz
Output Voltage	10.0VDC
Output Current	System-dependent, up to 10A
Ripple & Noise	≤50mV peak-to-peak
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	5–95% RH, non-condensing
Mounting	Panel, rack, or DIN rail mount
Protection Features	Overcurrent, overvoltage, and thermal protection
Cooling Method	Passive or forced air depending on configuration
Compliance	CE, UL, industrial safety standards
Origin	Germany

---

Applications

The HI-REG XRC-10.0 power supply is widely used in:

• Industrial automation and control systems
• Laboratory instrumentation and test equipment
• Process monitoring and control systems
• Energy management systems
• Safety-critical electronic systems
• Factory and building automation panels

---

Installation and Usage Instructions

1. Power Off: Ensure AC supply is disconnected before installation.
2. Mounting: Install the power supply in a secure panel, rack, or DIN rail slot.
3. Wiring: Connect AC input and DC output terminals according to system design.
4. Inspection: Confirm correct polarity and secure connections.
5. Power-On: Apply AC supply and verify DC output stability.
6. Operation: Monitor system load and ensure voltage remains within specification.
7. Maintenance: Periodically inspect terminals, cooling paths, and environmental conditions.

---

Technical Description

The HI-REG XRC-10.0 converts AC input into a stable and regulated DC output for industrial applications. Its internal regulation circuitry maintains precise voltage despite variations in input voltage or load. Protective circuits guard against overcurrent, overvoltage, and thermal stress, ensuring safe and continuous operation. The device is compatible with panel, rack, or DIN rail mounting and integrates seamlessly into automation and control systems.

---

Recommended Smiths Heimann Power Supplies & Modules

Model	Type	Output Voltage	Application
XRC-5.0	Power Supply	5VDC	Industrial control
XRC-12.0	Power Supply	12VDC	Automation panels
XRC-15.0	Power Supply	15VDC	Laboratory instruments
XRC-24.0	Power Supply	24VDC	HVAC and BMS systems
XRC-48.0	Power Supply	48VDC	Industrial drives
XRC-10.0	Power Supply	10VDC	Critical electronics
XRC-20.0	Power Supply	20VDC	Process control
XRC-30.0	Power Supply	30VDC	Energy management
XRC-36.0	Power Supply	36VDC	Factory automation
XRC-50.0	Power Supply	50VDC	Power electronics
XRC-60.0	Power Supply	60VDC	Modular control systems
XRC-75.0	Power Supply	75VDC	Industrial instrumentation
XRC-80.0	Power Supply	80VDC	Automation panels
XRC-100.0	Power Supply	100VDC	Test equipment
XRC-110.0	Power Supply	110VDC	Process monitoring
XRC-125.0	Power Supply	125VDC	Critical power systems
XRC-150.0	Power Supply	150VDC	Factory automation
XRC-200.0	Power Supply	200VDC	Industrial drives
XRC-220.0	Power Supply	220VDC	High-power systems
XRC-250.0	Power Supply	250VDC	Specialized industrial applications

---
