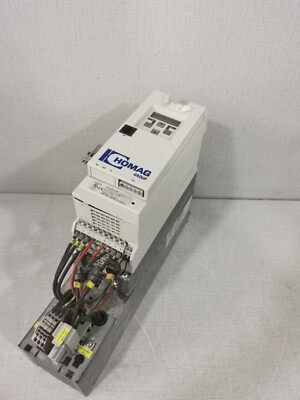

HOMAG F5 10F5CBB-YA00 V4.00.10 Inverter 2.2 kW

Product Overview

The HOMAG F5 10F5CBB-YA00 V4.00.10 is a 2.2 kW industrial inverter designed for precise speed control and energy-efficient operation of electric motors in automated machinery. Engineered for industrial-grade performance, this inverter delivers reliable motor control, reduced energy consumption, and protection features for machinery in demanding production environments. Its modular design ensures easy integration into HOMAG automation systems and other compatible industrial equipment.

---

Key Features

• ⚡ Rated power: 2.2 kW for small to medium-sized motors
• ⚡ Industrial inverter with HOMAG F5 series compatibility
• ⚡ Adjustable frequency and precise speed control
• ⚡ Built-in protection: overcurrent, overvoltage, thermal, and short-circuit
• ⚡ Compact and modular design for easy installation
• ⚡ High operational reliability in harsh environments
• ⚡ Supports integration with PLCs and automation systems

---

Product Parameters & Datasheet

Parameter	Specification
Model	F5 10F5CBB-YA00
Version	V4.00.10
Product Type	Industrial Inverter / Variable Frequency Drive
Rated Power	2.2 kW
Input Voltage	380–480 V AC, 3-phase
Output Voltage	0–480 V AC, 3-phase
Output Current	5.0 A nominal
Frequency Range	0–400 Hz
Control Type	V/F, vector control optional
Communication	Modbus RTU, CANopen (optional)
Mounting	DIN rail or panel-mountable
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +85°C
Cooling	Forced air / natural convection
Protection	Overcurrent, overvoltage, thermal, short-circuit
Compliance	CE, IEC industrial standards
Power Efficiency	>95% typical
Origin	Germany
Dimensions	180 x 140 x 110 mm (approx.)

---

Applications

The HOMAG F5 2.2 kW Inverter is ideal for motor-driven applications in industrial environments:

• Woodworking machinery and CNC equipment
• Conveyor systems in production lines
• Pumps, fans, and compressors in process industries
• Packaging and material handling automation
• HVAC systems requiring variable-speed control
• General industrial motor control applications

---

Product Usage Instructions

Installation

• Ensure the inverter is powered off before installation
• Mount the inverter securely in a ventilated panel or DIN rail
• Connect input power, motor, and control signals per wiring diagram
• Verify grounding and EMI mitigation measures

Configuration

• Set motor parameters and frequency range via built-in keypad or software interface
• Configure protective functions and communication protocols as needed

Operation

• Start, stop, and adjust motor speed via panel, PLC, or field signals
• Monitor operating status and fault codes through LEDs or display interface
• Use diagnostics to ensure safe and efficient operation

Maintenance

• Regularly inspect cooling vents and fan operation
• Verify cable connections and terminal integrity
• Replace inverter if persistent faults or abnormal operation occur

---

Technical Description

The HOMAG F5 10F5CBB-YA00 V4.00.10 Inverter provides precise motor control by regulating voltage and frequency supplied to the motor. It features multiple protective mechanisms, high reliability under industrial conditions, and seamless integration into automation systems. The inverter is capable of handling dynamic load changes while maintaining energy efficiency. Modular construction allows easy replacement or system upgrades without extensive downtime.

---

Recommended HOMAG F5 Series Inverters & Modules

No.	Model	Product Type
1	F5 10F5CBB-YA01	1.5 kW Inverter
2	F5 10F5CBB-YA02	3.0 kW Inverter
3	F5 10F5CBB-YA03	4.0 kW Inverter
4	F5 10F5CBB-YA04	5.5 kW Inverter
5	F5 10F5CBB-YA05	7.5 kW Inverter
6	F5 10F5CBB-YA06	11 kW Inverter
7	F5 10F5CBB-YA07	15 kW Inverter
8	F5 10F5CBB-YA08	18.5 kW Inverter
9	F5 10F5CBB-YA09	22 kW Inverter
10	F5 10F5CBB-YA10	30 kW Inverter
11	F5 10F5CBB-YB00	High-Speed Control Module
12	F5 10F5CBB-YB01	Communication Module
13	F5 10F5CBB-YB02	I/O Expansion Module
14	F5 10F5CBB-YC00	Safety Relay Module
15	F5 10F5CBB-YC01	PLC Integration Module
16	F5 10F5CBB-YD00	Energy Monitoring Module
17	F5 10F5CBB-YD01	Fieldbus Interface Module
18	F5 10F5CBB-YE00	Vector Control Upgrade Module
19	F5 10F5CBB-YE01	Motor Feedback Module
20	F5 10F5CBB-YF00	Redundant Power Supply Module

---
