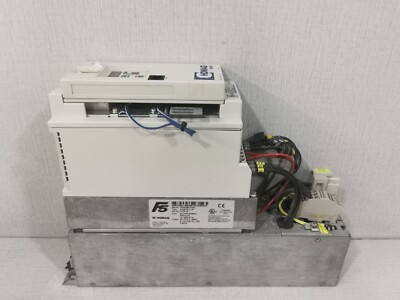

HOMAG F5 10F5CBB-YA00 V3.00.10 Inverter 2.2 kW

Product Overview

The HOMAG F5 10F5CBB-YA00 V3.00.10 is a high-performance industrial inverter designed for precise motor control in manufacturing and automation applications. With a 2.2 kW power rating, this inverter provides efficient speed and torque regulation for electric motors, ensuring smooth operation and energy efficiency. Its robust design makes it suitable for continuous-duty operation in industrial environments.

---

Key Features

• Rated power: 2.2 kW
• Input voltage: 380–480 V AC (three-phase)
• Advanced PWM control for precise motor speed and torque
• Integrated protection: overcurrent, overvoltage, and thermal
• Compact, panel-mountable industrial design
• Supports forward and reverse motor operation
• High-efficiency operation with minimal heat generation
• Firmware version: V3.00.10 for enhanced stability and features

---

Product Parameters & Datasheet

Parameter	Specification
Model	F5 10F5CBB-YA00
Firmware Version	V3.00.10
Product Type	Industrial Inverter
Rated Power	2.2 kW
Input Voltage	380–480 V AC
Output Voltage	0–480 V AC
Output Frequency	0–400 Hz
Control Modes	V/f control, vector control
Efficiency	>95%
Cooling	Fan-assisted
Operating Temperature	0°C to +50°C
Storage Temperature	–20°C to +70°C
Protection	Overcurrent, overvoltage, thermal, short-circuit
Mounting	Panel or cabinet
Housing	Industrial-grade metal enclosure
Origin	Germany

---

Applications

The HOMAG F5 inverter is widely used in:

• CNC machinery and woodworking equipment
• Industrial automation lines
• Conveyor and material handling systems
• Pumps, fans, and HVAC applications
• Manufacturing process control
• Robotics and motor-driven assembly systems

---

Installation & Usage Instructions

1. Mounting: Install the inverter inside a ventilated control cabinet or panel.
2. Power Wiring: Connect the three-phase input voltage (380–480 V AC) to the designated terminals.
3. Motor Connection: Connect the motor output terminals according to wiring specifications.
4. Configuration: Set the motor parameters and control mode using the inverter interface or software.
5. Operation: Run the inverter to control motor speed and torque; monitor for alarm conditions.
6. Maintenance: Check cooling fans and connectors periodically; clean dust from the ventilation slots.

---

Technical Description

The HOMAG F5 10F5CBB-YA00 inverter uses pulse-width modulation (PWM) technology to provide smooth and efficient motor control. The device includes integrated protection circuits to safeguard against overcurrent, overvoltage, and overheating. Its industrial-grade construction allows for reliable continuous operation in demanding manufacturing environments. The V3.00.10 firmware ensures optimal performance and stability for various motor types, supporting both vector and V/f control modes.

---

Recommended HOMAG F5 Inverters & Modules

Model	Power	Voltage	Application	Key Feature
10F5CBB-YA00	2.2 kW	380–480 V	CNC machines	PWM motor control
10F5CBB-YA01	3.0 kW	380–480 V	Woodworking	Overcurrent protection
10F5CBB-YA02	4.0 kW	380–480 V	Automation lines	Vector control
10F5CBB-YA03	5.5 kW	380–480 V	Conveyor systems	Thermal protection
10F5CBB-YA04	7.5 kW	380–480 V	Robotics	Smooth acceleration
10F5CBB-YA05	1.5 kW	380–480 V	HVAC	Compact footprint
10F5CBB-YA06	2.2 kW	380–480 V	Pumps	Fan-assisted cooling
10F5CBB-YA07	3.7 kW	380–480 V	CNC routers	High efficiency
10F5CBB-YA08	4.0 kW	380–480 V	Industrial drives	V/f control
10F5CBB-YA09	5.5 kW	380–480 V	Automated lines	Panel mountable
10F5CBB-YA10	2.2 kW	380–480 V	Woodworking	Stable operation
10F5CBB-YA11	3.0 kW	380–480 V	Material handling	Compact design
10F5CBB-YA12	4.0 kW	380–480 V	Pumps & fans	Low noise operation
10F5CBB-YA13	5.5 kW	380–480 V	CNC milling	High reliability
10F5CBB-YA14	2.2 kW	380–480 V	Robotics	Advanced firmware V3.00.10
10F5CBB-YA15	3.0 kW	380–480 V	Process automation	Smooth torque control
10F5CBB-YA16	4.0 kW	380–480 V	Manufacturing	Integrated protection
10F5CBB-YA17	5.5 kW	380–480 V	CNC lathes	Efficient operation
10F5CBB-YA18	2.2 kW	380–480 V	Assembly lines	Fan-assisted cooling
10F5CBB-YA19	3.7 kW	380–480 V	Packaging machines	Compact industrial design

---
