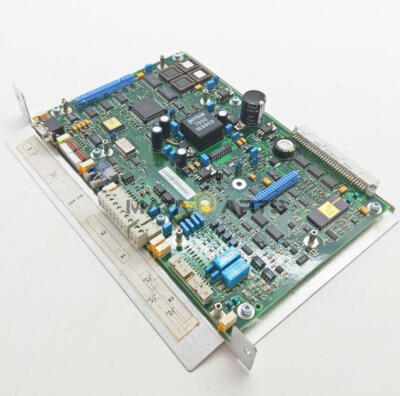

The ABB YPP110A (Part Number: 3ASD573001A1) is a specialized Drive Digital Processor Module designed for high-power industrial drive systems. This unit acts as the primary computational engine for large-scale drive architectures, managing complex control algorithms, signal processing, and communication between the drive and external control systems. It is engineered to provide the rapid processing speeds required for high-performance motor control and power conversion applications.

Product Parameters & Datasheet

The technical specifications for the ABB YPP110A are detailed in the datasheet summary below:

• Model Number: YPP110A
• Part Number: 3ASD573001A1
• Component Type: Drive Digital Processor / Control Board
• Processor Type: High-speed digital signal processor (DSP)
• Power Supply: Internally powered via the drive backplane or dedicated DC input
• Communication Ports: Fiber optic links, RS-232/485 service interfaces
• Compatibility: Used within ABB high-power converters and DC drive systems
• Operating Temperature: 0°C to +55°C (standard industrial)
• Storage Temperature: -40°C to +85°C



Product Technical Description

The 3ASD573001A1 module is the “intelligence” of the drive system. It executes the core software responsible for pulse width modulation (PWM) control, torque calculation, and speed regulation. The YPP110A features multiple high-speed fiber optic interfaces to ensure noise-immune communication with gate driver boards and remote I/O. Its hardware architecture is optimized for low-latency processing, which is critical for maintaining system stability during rapid load changes or fault conditions.



Application Fields

This processor module is a key component in heavy-duty industrial environments, including:

• Metals and Mining: Controlling large DC drives for rolling mills and heavy-duty hoists.
• Oil & Gas: Managing variable speed drives for large compressors and offshore drilling rigs.
• Marine Propulsion: Integrated into high-capacity electric propulsion systems for large vessels.
• Power Generation: Used in excitation systems and static frequency converters.



Country of Origin

The ABB YPP110A is manufactured in Sweden, maintaining the precision and reliability standards associated with ABB’s power electronics division.



Product Usage Instructions

1. Installation: Ensure the drive is completely powered down and discharged before installation. Slide the module into the designated slot of the control rack, ensuring the multi-pin backplane connectors are fully seated.
2. Fiber Optic Connection: Connect the fiber optic cables to the TX and RX ports. Use care not to exceed the minimum bend radius of the cables to prevent signal loss.
3. Grounding: Verify that the module’s faceplate is securely fastened to the rack frame to ensure proper electromagnetic shielding and grounding.
4. Firmware Verification: Upon power-up, check the system diagnostic software to confirm that the YPP110A firmware version is compatible with the overall drive software release.
5. Maintenance: Periodically inspect the module for dust accumulation. Use only ionized compressed air for cleaning to prevent electrostatic discharge (ESD) damage to the sensitive surface-mount components.
