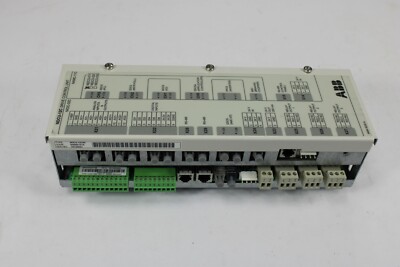

The ABB 64650181A (Model NDCU-12C / NDCU-12CKF) is a high-performance Drive Control Unit designed specifically for the ACS800 series industrial frequency converters. This unit serves as the “brain” of the drive system, responsible for executing complex motor control algorithms and managing communication between the power electronics and external automation systems. The 64650181A NDCU-12C is engineered to provide high-speed processing for Direct Torque Control (DTC), ensuring precise motor speed and torque regulation in heavy-duty applications.

Product Parameters

The NDCU-12C is built for seamless integration within modular ABB drive architectures.



Technical Description

The NDCU-12C Drive Control Unit integrates the RMIO (Motor Control and I/O) board and the RDCU (Drive Control) logic into a single modular assembly. It utilizes fiber optic links to communicate with the inverter modules, providing high noise immunity and extremely low latency. The “KF” designation often indicates the presence of conformal coating, which protects the internal circuitry from humidity, dust, and corrosive gases. This unit supports a wide range of fieldbus adapters, allowing the drive to be controlled via PROFIBUS, DeviceNet, or ControlNet.



Country of Origin

This drive control component is designed and manufactured in Finland by ABB Oy, meeting global IEC and UL standards for industrial power electronics.



Application Fields

The NDCU-12C is a critical component in various high-demand industrial sectors:

• Metals & Mining: Controlling large conveyor systems and mill drives.
• Pulp & Paper: Managing speed synchronization for paper machines and winders.
• Oil & Gas: Precision control for centrifugal pumps and gas compressors.
• Marine & Offshore: Power management for thrusters and main propulsion drives.
• Water Management: High-efficiency control for large-scale pumping stations.



Product Usage Instructions

1. Installation: Slide the NDCU-12C unit into the designated slot within the ACS800 drive cabinet. Ensure the mounting screws are tightened to establish a solid frame ground.
2. Fiber Optic Connection: Connect the plastic or HCS fiber optic cables from the inverter modules to the RDCO channels. Maintain the minimum bend radius to avoid signal loss.
3. Power Supply: Ensure a clean 24 VDC source is connected. In modular systems, the power is often supplied through the drive’s internal bus.
4. Firmware Loading: Ensure the correct application firmware (e.g., Standard, Pump/Fan, or System) is loaded onto the Flash memory before startup.
5. Diagnostic Monitoring: Use the CDP-312R control panel or DriveWindow software connected to the modular interface to monitor real-time signals and fault history.
