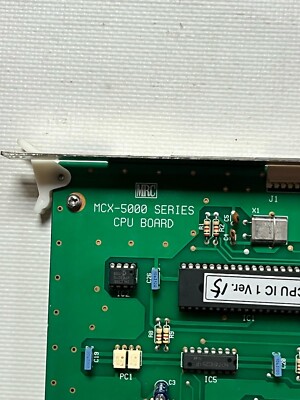

The MRC MCX-5000 Series CPU Board serves as the primary central processing engine for the MCX-5000 distributed control and monitoring system. Designed for high-reliability industrial environments, this board manages the execution of control logic, data logging, and high-speed communication between various I/O modules and the operator interface. It is engineered to provide stable, real-time performance in applications requiring sophisticated algorithm processing and robust system diagnostics.



Product Parameters & Datasheet

The technical specifications for the MRC MCX-5000 CPU Board are detailed in the datasheet summary below:

• Series: MCX-5000
• Component Type: Central Processing Unit (CPU) Board
• Processor: High-performance 32-bit industrial RISC processor
• Memory Configuration: Integrated Flash for firmware/logic and SRAM for runtime data
• Communication Ports: Dual Ethernet (10/100 Mbps), RS-232, and RS-485
• Bus Interface: Proprietary MCX backplane connector
• Operating Voltage: 5 Vdc / 12 Vdc (supplied via backplane)
• Diagnostics: Onboard LED status indicators for CPU Run, Fault, and Link
• Real-Time Clock: Integrated with battery backup support
• Operating Temperature: -10°C to +60°C

Product Technical Description

The MCX-5000 CPU Board is built on a multi-layer PCB designed to minimize electromagnetic interference (EMI) and thermal stress. It features a deterministic multitasking operating system that ensures critical control loops are executed with microsecond precision. The board supports redundant configurations, allowing a secondary CPU to take over system control seamlessly in the event of a primary hardware failure. High-density surface-mount technology (SMT) and industrial-grade capacitors ensure a long mean time between failures (MTBF), even in continuous 24/7 operations.



Application Fields

The MCX-5000 series is widely utilized in large-scale infrastructure and manufacturing, including:

• Power Distribution: Monitoring and control of substation switchgear and transformers.
• Building Automation: Integrating HVAC, lighting, and elevator systems in high-rise structures.
• Water Management: Controlling large-scale desalination plants and wastewater treatment facilities.
• Process Manufacturing: Managing production lines in the food, beverage, and pharmaceutical industries.



Country of Origin

The MRC MCX-5000 Series CPU Board is manufactured in Japan, adhering to the highest global standards for precision electronics and industrial durability.



Product Usage Instructions

1. Installation: Power down the MCX-5000 rack before inserting the CPU board. Align the board with the guide rails and slide it firmly into the designated master slot until the backplane connectors are fully engaged.
2. Battery Connection: If the board utilizes an external backup battery for memory retention, ensure the battery jumper is set to the “ON” position before programming.
3. Firmware Update: Connect to the CPU via the RS-232 service port or Ethernet to verify the current firmware version. Ensure it matches the requirements of your specific application logic.
4. Networking: Configure the IP address and subnet mask via the system configuration utility. Ensure the Ethernet cables are shielded (STP) to prevent communication drops in noisy environments.
5. Maintenance: Periodically check the “Health” LED. A flashing red light usually indicates a memory checksum error or a communication timeout with a remote I/O rack.
