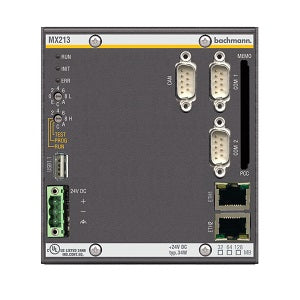

The Bachmann MX213 is a powerful, high-performance processor module designed for the M1 automation system. Engineered to handle complex control tasks, this CPU module combines robust processing power with extensive communication capabilities. The MX213 serves as the central intelligence unit for demanding industrial applications, offering real-time performance and high reliability for synchronized multi-axis motion control and large-scale process automation.
Product Parameters & Datasheet
The MX213 is built for high-speed data processing and seamless integration within the Bachmann M1 architecture.
| Parameter | Specification Details |
| Model Number | MX213 |
| Processor | Intel Celeron / Pentium class (Clock speed dependent on version) |
| Memory | 128 MB to 512 MB SDRAM / 512 KB NVRAM |
| Storage | CompactFlash (CF) Slot for Operating System and Data |
| Interfaces | 2 x Ethernet (10/100/1000 Mbps), 1 x RS-232, 2 x USB 2.0 |
| Fieldbus Support | Profibus, CANbus, PROFINET, EtherCAT (via expansion) |
| Power Supply | 24 VDC (-15% / +25%) via backplane |
| Operating Temp | -30°C to +60°C |
| Status Display | 4-digit alphanumeric LED display + System LEDs |
Technical Description
The Bachmann MX213 processor operates on a real-time multitasking operating system, allowing for deterministic execution of control logic. It features an integrated mass storage interface via CompactFlash, ensuring that the application program and system parameters are retained even during power loss. The module’s dual Gigabit Ethernet ports support high-speed vertical integration into plant networks and horizontal synchronization between multiple M1 controllers. Its fanless design and high-quality industrial components ensure a long mean time between failures (MTBF), even in high-vibration environments.
Country of Origin
This advanced processor module is designed and manufactured in Austria by Bachmann electronic GmbH, meeting stringent European quality and industrial safety standards.
Application Fields
The MX213 is the standard choice for high-end automation in several key sectors:
- Wind Power: Controlling pitch and yaw systems, as well as grid synchronization for large turbines.
- Marine & Offshore: Management of ship propulsion, auxiliary systems, and platform automation.
- Renewable Energy: Centralized control for solar thermal plants and large-scale battery storage.
- Industrial Machinery: Precision control for high-speed packaging, printing, and metalworking machines.
- Infrastructure: Monitoring and control for tunnel ventilation and railway power systems.
Product Usage Instructions
- Module Assembly: Insert the MX213 into the leftmost slot (Slot 1) of the M1 backplane. Ensure the locking levers are engaged to provide a secure electrical connection.
- CF Card Installation: Insert a pre-configured CompactFlash card containing the firmware and application logic into the front-accessible slot before powering up.
- Network Configuration: Connect the Ethernet ports to your engineering station. Use the Bachmann SolutionCenter software to assign IP addresses and configure the hardware topology.
- Diagnostics: Use the 4-digit alphanumeric display on the front panel to monitor system boot status and error codes (e.g., “RUN”, “STOP”, or specific fault IDs).
- Backup: Regularly back up the NVRAM data to the CF card using the system’s software utility to prevent loss of retentive variables during long-term storage.
