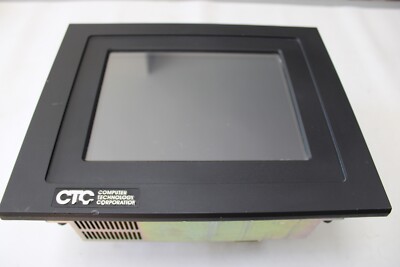

The CTC P41-120AR is a ruggedized industrial Power Station designed for high-performance Human-Machine Interface (HMI) applications. Part of the P1 generation of Parker Hannifin’s CTC division, this unit combines the flexibility of a PC-based architecture with the durability required for factory floor environments. The P41-120AR features a high-resolution 10.4-inch active matrix display and an analog resistive touchscreen, providing a reliable control point for complex automated machinery and SCADA visualization.



Product Parameters & Datasheet

The P41-120AR is engineered for industrial-grade processing and environmental resilience.



Technical Description

The CTC Power Station P41-120AR operates on a specialized industrial BIOS and often runs InterAct or InteractX runtime software. Unlike standard consumer PCs, the P41-120AR utilizes a fanless cooling design and solid-state storage (CompactFlash) to eliminate moving parts, significantly increasing its Mean Time Between Failures (MTBF) in high-vibration areas. The “AR” designation indicates an Active Matrix display with Resistive touch, ensuring high visibility under industrial lighting and compatibility with gloved operation. Its expansive I/O suite allows it to communicate simultaneously with multiple PLC brands via various serial and Ethernet drivers.



Country of Origin

This operator interface is designed and manufactured in the United States (USA) by Parker Hannifin Corporation (CTC Parker Automation), meeting North American UL and CE industrial safety standards.



Application Fields

The P41-120AR is a standard interface for mission-critical industrial sectors:

• Automotive Assembly: Monitoring robotic welding cells and paint shop conveyors.
• Food & Beverage: Providing wash-down protected control for bottling and packaging lines (NEMA 4X).
• Pharmaceutical: Batch management and data logging for chemical processing units.
• Oil & Gas: Local HMI for compressor stations and remote telemetry units (RTUs).
• Material Handling: Centralized control for high-speed sorting and automated warehousing.

Product Usage Instructions

1. Mounting: Place the unit into a console cutout. Ensure the integrated gasket is properly seated to maintain the NEMA 4/4X seal against liquid and dust ingress.
2. Power Wiring: Connect a 24 VDC source to the terminal block. It is recommended to use a filtered power supply to protect the unit from voltage spikes common in motor-driven environments.
3. Software Loading: Insert the CompactFlash card containing the InterAct project into the rear slot. The system is designed to boot directly into the HMI runtime application.
4. Communication Configuration: Connect the serial or Ethernet cables to your PLC. Use the software configuration menu to select the specific communication driver (e.g., Allen-Bradley, Siemens, or Modbus).
5. Touchscreen Calibration: Upon initial startup or if the cursor appears offset, run the “TSCAL” utility from the system menu to align the touch inputs with the visual display.
