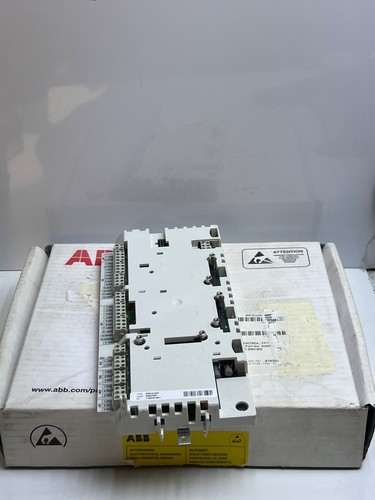

The ABB RDCU-02C (64607901) is a specialized drive control unit used primarily within ACS800 series frequency converters. It serves as the intelligent core, managing motor control logic, processing I/O signals, and facilitating communication between the power stage and external automation systems via fiber optic or fieldbus interfaces.



Parameters

• Model Number: RDCU-02C
• Part ID: 64607901
• Input Voltage: 24 V DC (+/- 10%)
• Current Consumption: 1.2 A (maximum)
• Interface: Fiber optic DDCS channels
• Processor: High-speed digital signal processor (DSP)



Specifications

• Brand: ABB
• Compatibility: ACS800 series drives
• Coating: Conformal coated (C-variant) for moisture/dust resistance
• Mounting: Internal drive chassis mounting
• Operating Temp: 0°C to +50°C
• Communication: Supports RMIO, NPBA, and NDNA modules



Applications

• Motor Control: Precise torque and speed regulation in heavy industrial drives.
• System Integration: Managing drive-to-drive communication in multi-drive lineups.
• Process Automation: Interfacing drives with PLC and DCS systems.
• Mining & Marine: High-reliability motor control in harsh environmental conditions.

Q&A

• Q: What does the “C” suffix in RDCU-02C signify?
  • A: It indicates that the circuit board is conformal coated to protect against corrosion and humidity.
• Q: Can this board be used to replace an RDCU-01 unit?
  • A: While similar, the RDCU-02C features updated hardware; software compatibility must be verified with the drive firmware version.
• Q: Does it require a separate memory unit?
  • A: Yes, it typically operates in conjunction with an RMIO board or NCHU memory unit containing the specific application macro.
