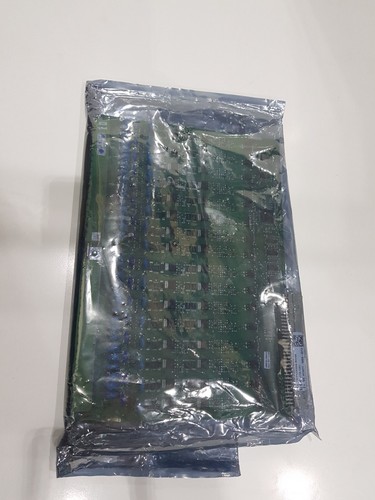

The ABB 1MRK000508-BDR04 is a high-density Binary Input Module (BIM) designed for the Relion 670 and 650 series protection and control IEDs. It provides reliable status monitoring of external primary equipment and auxiliary contacts, translating physical field signals into digital data for high-speed logic processing.

View more ABB 1MRK000508-BDR04 series components for grid automation.



Product Parameters

• Model: 1MRK000508-BDR04
• Module Type: BIM (Binary Input Module)
• Input Channels: 16 independent binary inputs
• Rated Voltage: 110-125 V DC / 220-250 V DC (configurable variants)
• Power Consumption: Low thermal dissipation per active channel



Product Specifications

• Threshold Voltage: Settable pick-up and drop-out levels
• Filtering: Integrated hardware and software debouncing
• Isolation: 2 kV AC galvanic isolation between inputs and internal logic
• Mounting: Internal slot-based installation for Relion IED chassis
• Connection: Heavy-duty compression terminals

Application Areas

• Substation Automation: Monitoring circuit breaker and disconnector positions.
• Protective Relaying: Interlocking logic and external trip signal acquisition.
• Sequence of Events (SOE): High-resolution time-stamping of binary state changes.



Product Q&A

• Q: Can the input threshold be adjusted for different battery voltages?
  • A: Yes, the pick-up voltage levels are configurable to ensure reliable operation across common substation DC voltages.
• Q: Does this module support time-stamping?
  • A: All inputs on this BIM are scanned at high frequency to provide millisecond-accurate event recording within the IED.
• Q: Is the 1MRK000508-BDR04 hot-swappable?
  • A: While the hardware is robust, it is recommended to de-energize the IED or follow specific safety protocols before removing internal modules.
