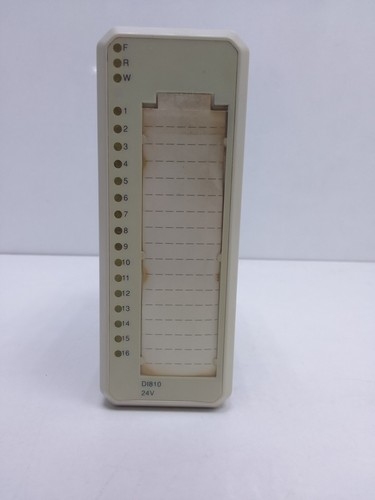

The ABB 3BSE008508R1 is a high-density digital input module from the S800 I/O family. This module features 16 channels designed to interface 24V DC process signals with the controller, offering reliable signal isolation and robust performance in demanding industrial environments.

For more information or to browse our inventory, visit our model catalog.



Product Specifications



Operational Precautions

• Input Voltage Limits: Ensure input signals do not exceed 30V DC to prevent permanent damage to the internal opto-couplers.
• Module Seating: Confirm the module is firmly clicked into the MTU (Module Termination Unit) to ensure stable communication with the backplane bus.
• Heat Management: When installing multiple high-density modules, maintain proper cabinet cooling to prevent derating of the input circuits.
• Wiring Separation: Keep 24V DC signal wires separate from high-voltage AC cables to minimize electromagnetic interference (EMI).



FAQ (Questions & Answers)

Q: Can the DI810 be “hot-swapped”? A: Yes, the S800 I/O system supports hot-swapping (Removal and Insertion Under Power), allowing you to replace the module without shutting down the entire station.

Q: Does this module require a specific base? A: Yes, it must be used with a compatible S800 Module Termination Unit (MTU), such as the TU810, TU812, or TU830.

Q: What is the status of the front-facing LEDs? A: The module includes a “Run” LED for operational status, a “Fault” LED for internal errors, and individual yellow LEDs for each of the 16 input channels.

Similar S800 Series Models

1. DI811 (3BSE008510R1): Digital input module with 16 channels, 48V DC.
2. DI814 (3BSE008512R1): Digital input module with 16 channels, 24V DC (current sourcing).
3. DO810 (3BSE008516R1): Digital output module, 16 channels, 24V DC / 0.5A.
4. DI820 (3BSE008514R1): Digital input module, 8 channels, 120V AC/DC.
5. AI810 (3BSE008516R1): Analog input module, 8 channels, 0…20mA / 4…20mA.
