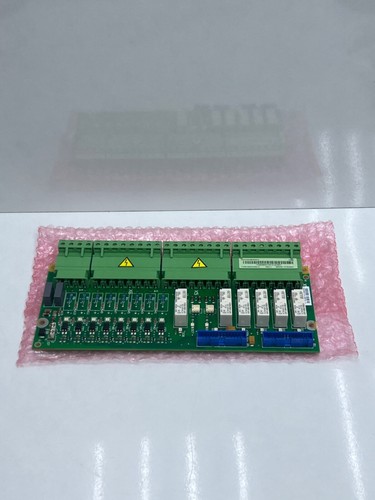

The ABB SDCS-IOB-21 is a specialized digital input/output interface board designed for use within the DCS800 and DCS500 drive systems. This board acts as a critical communication bridge, processing digital signals between the drive’s control unit and external process equipment to ensure precise motor control and system feedback.
For technical specifications or to verify current stock, please visit our model listings.
Product Specifications
| Feature | Details |
| Model Name | SDCS-IOB-21 |
| Product ID | 3ADT220090R0014 |
| Country of Origin | Finland / Sweden |
| Digital Inputs | 8 Channels (Isolated) |
| Digital Outputs | 8 Channels (Relay or Transistor) |
| Compatibility | DCS800 / DCS500 Drive Series |
| Dimensions (WxHxD) | 120 x 180 x 30 mm |
| Net Weight | 0.35 kg |
| Power Consumption | Supplied via Drive Backplane |
Operational Precautions
- Electrostatic Discharge: This board contains highly sensitive CMOS components; always use a grounded wrist strap during installation or replacement.
- Mounting Security: Ensure the board is correctly aligned with the plastic standoffs and the ribbon cable connectors are fully seated to prevent communication timeouts.
- Voltage Verification: Confirm that external input signal voltages match the board’s rated specifications (typically 24V DC) before energizing the system.
- Firmware Sync: After replacement, verify that the drive parameters recognize the new I/O expansion to ensure all logic functions are active.
FAQ (Questions & Answers)
Q: Where is the SDCS-IOB-21 typically installed? A: It is usually mounted directly onto the drive’s electronic tray or within an extension slot designated for optional I/O modules.
Q: Can this board be used to trigger external alarms? A: Yes, the digital outputs can be programmed within the drive software to signal various states such as “Ready,” “Running,” or “Fault.”
Q: What is the difference between the IOB-21 and standard drive I/O? A: The IOB-21 provides additional, galvanically isolated channels, allowing for expanded automation capabilities beyond the drive’s integrated base I/O.
Similar DCS800 Series Models
- SDCS-IOB-22 (3ADT220090R0015): Interface board featuring different input voltage ranges.
- SDCS-IOB-23 (3ADT220090R0016): Specialized I/O board with additional encoder interface options.
- SDCS-CON-4 (3ADT313900R1001): Main control board for DCS800 power modules.
- SDCS-COM-8 (3ADT220090R0008): Communication board supporting multiple fieldbus protocols.
- SDCS-PIN-4 (3ADT220090R0004): Pulse transformer and interface board for power electronics.
