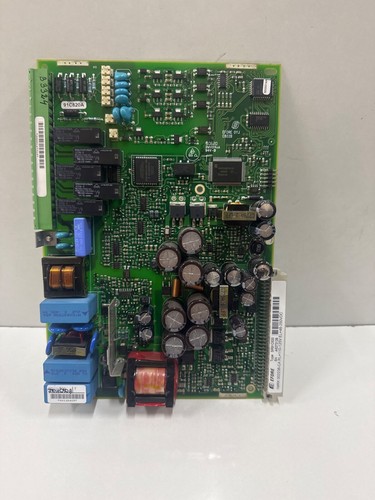

The ABB 1MRK002238-CA is a specialized power module PC board designed for high-voltage protection and control systems within the Relion family. This internal component ensures stable voltage regulation and electrical isolation, providing the necessary power distribution for the relay’s processing and communication units.



Key Specifications



Operational Precautions

• Electrostatic Safety: Always handle the PC board by its edges and use an ESD-safe workstation to prevent damage to sensitive surface-mount components.
• Firmware Alignment: Ensure the main processor board recognizes the power module variant to prevent power-up diagnostic errors.
• Secure Fastening: When replacing the board, verify that all standoff screws are tightened to the specified torque to maintain proper grounding and heat dissipation.

Common Questions Q&A

Q: Can this power module be interchanged between different Relion models? A: Compatibility depends on the hardware version and power requirements of the specific IED; always verify the ordering code matches the original internal bill of materials.

Q: Does this board include surge protection? A: Yes, it features integrated filtering and surge suppression to protect the relay’s internal logic from external electrical transients.



Recommended Similar Models

1. 1MRK002238-AA: A standard power module variant with a different voltage input range.
2. 1MRK002238-BA: A medium-range DC power supply board for similar IED series.
3. 1MRK002239-AB: A related internal processing or I/O interface board.
4. 1MRK000508-AD: A high-capacity power supply unit for larger protection racks.
5. 1MRK002133-BA: A communication interface board often used alongside this power module.

Technical details and stock availability for the ABB 1MRK002238-CA are available through our current inventory.
