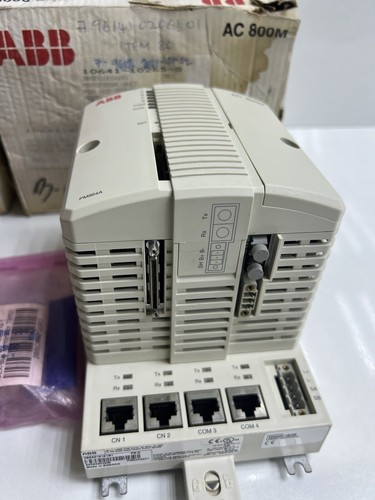

The ABB PM864AK01 (3BSE018161R1) is a versatile CPU module designed for the AC800M controller platform, offering a balanced combination of processing power and memory. This model is widely used in medium-to-large industrial automation systems, providing reliable logic execution and seamless integration with various communication interfaces.



Technical Specifications



Operational Precautions

• Input Power Quality: Ensure a stable 24V DC supply; voltage fluctuations outside the 19.2 – 30V range can cause unexpected processor resets.
• Battery Replacement: Replace the backup battery (SB821) while the power is ON to prevent the loss of application programs stored in RAM.
• Module Seating: Verify that the processor is fully engaged with the TP830 Terminal Base to ensure reliable communication with the I/O modules.
• Ambient Cooling: Maintain vertical mounting to allow proper airflow through the cooling fins, preventing internal component overheating.

Common Q&A

Q: Can the PM864AK01 be used in a redundant configuration? A: Yes, the PM864AK01 supports CPU redundancy when paired with an identical unit and the appropriate redundancy communication link.

Q: Is this processor compatible with the S800 I/O system? A: Absolutely; it is designed to act as the central controller for S800 I/O stations via the ModuleBus or fieldbus interfaces.

Q: How do I update the firmware on this module? A: Firmware updates are performed using the ABB Control Builder M software through the serial or Ethernet maintenance ports.



Recommended Similar Models

1. PM861AK01: A compact version with 16MB RAM for smaller automation tasks.
2. PM864AK02: The redundant kit version which includes two processors and termination units.
3. PM866AK01: A higher-speed 133MHz processor with 64MB RAM for memory-intensive logic.
4. PM856AK01: An entry-level processor for simple control and monitoring applications.
5. CI854A: A PROFIBUS DP interface commonly used to connect field devices to the PM864A.
