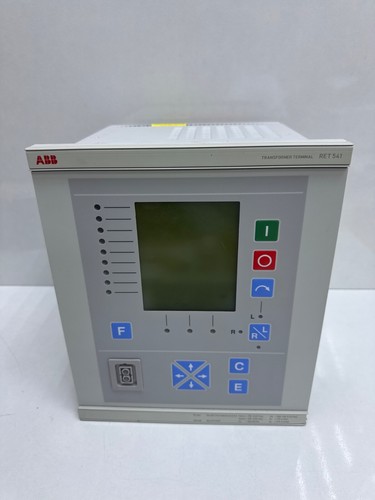

The ABB RET541 (ordering code RET541AM234AAAA) is a multi-functional terminal unit designed for the comprehensive protection, control, measurement, and supervision of two-winding power transformers and power generator-transformer units. Part of the SPACOM family, this microprocessor-based IED (Intelligent Electronic Device) integrates differential protection with advanced monitoring features in a single compact housing.

Technical Functionality

The RET541 provides high-speed, three-phase stabilized transformer differential protection (3ΔI>) with second and fifth harmonic restraint to prevent nuisance tripping during magnetizing inrush or overexcitation. The “AM” configuration typically signifies a specific hardware arrangement of analog inputs (current and voltage transformers) and binary I/O, allowing the unit to perform both primary protection and automated tap-changer control (U-vars).

Key Specifications

Operational Precautions

• CT Ratio Matching: The differential protection algorithm requires precise matching of the primary and secondary current transformer ratios. Ensure the software scaling factors are correctly calculated to avoid “false” differential currents during normal load.
• Vector Group Compensation: The RET541 handles the phase shift of the transformer (e.g., Dyn11) internally via software. Verify the vector group setting matches the nameplate to prevent immediate tripping upon energization.
• Thermal Image Reset: Following a thermal overload trip, the internal “thermal image” of the transformer must be allowed to cool (internally calculated) before a manual reset and re-energization is attempted.

Common Questions Q&A

Q: Does the RET541 support RTD inputs for direct temperature monitoring? A: Yes, depending on the hardware variant, the unit can interface with RTD modules (like the RTD1) to incorporate actual oil or winding temperatures into the protection logic.

Q: Can this unit manage two transformers in parallel? A: The RET541 includes a specialized “Master/Follower” or “Minimizing Circulating Current” (MCC) principle for controlling parallel-operating transformers with on-load tap-changers.

Recommended Similar Models

1. RET543: An enhanced version with additional binary I/O and logic capacity for complex schemes.
2. RET545: The high-tier variant with maximum I/O and advanced disturbance recording.
3. RET670: The modern Relion series successor for high-voltage transmission transformers.
4. SPAD 346 C: A dedicated stabilized differential relay for smaller transformers.
5. REF541: The feeder protection equivalent within the same hardware family.
