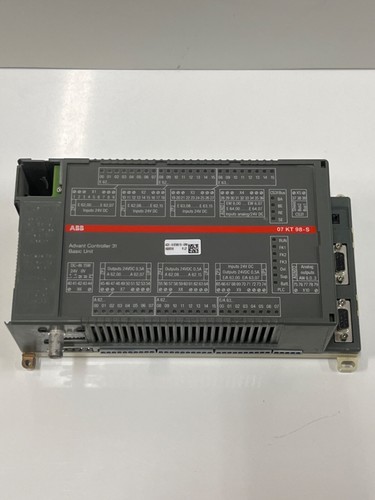

The ABB GJR5253100R2360 (Model 07KT98-S H5) is a specialized, safety-oriented programmable logic controller from the Advant Controller 31 (AC31) series. The “-S” designation specifically identifies this as a Safety PLC, designed for applications where high-integrity monitoring and fail-safe operations are mandatory.



Technical Functionality

The 07KT98-S functions as a centralized processing unit with integrated safety logic. It is capable of managing both standard automation tasks and safety-critical functions (such as emergency stops or light curtain monitoring) within the same hardware. It utilizes the ARCNET protocol for high-speed deterministic networking and the CS31 system bus for decentralized I/O expansion.



Key Specifications



Operational Precautions

• Safety Integrity: When using the “-S” safety features, ensure the programming is performed using the dedicated safety-certified software blocks. Standard AC31 blocks may not meet the required safety SIL (Safety Integrity Level) standards.
• ARCNET Termination: If the 07KT98-S is the first or last node on the ARCNET network, a 93 Ω terminating resistor is required to ensure signal stability and prevent data packet collisions.
• Battery Maintenance: This controller uses the 07 LE 90 lithium battery to retain RETAIN variables and real-time clock data. If the “BATT” LED on the front panel illuminates, replace the battery within one week while the power is ON to avoid program loss.
• Diagnostic Monitoring: Utilize the front-panel LEDs for rapid troubleshooting. A steady ERR LED indicates a fatal system error, while a flashing LED typically denotes a non-fatal configuration mismatch or a bus fault on the CS31 line.

Common Questions Q&A

Q: Is the 07KT98-S H5 compatible with standard 07KT98 I/O modules? A: Yes, it can communicate with standard S90 series I/O modules via the CS31 bus, but safety-critical I/O must be handled by dedicated safety modules to maintain the integrity of the safety loop.

Q: Can this PLC be programmed with modern ABB Automation Builder? A: The 07KT98 series typically uses the legacy 907 AC 1131 programming software. Integration into modern suites may require specific libraries or a hardware gateway.



Recommended Similar Models

1. 07KT97: A slightly lower-spec variant without the safety-certified processor.
2. 07KT98-S-DP: A safety variant featuring PROFIBUS DP communication instead of ARCNET.
3. 07KT94: A compact controller from the same family for smaller I/O requirements.
4. 07MC90: The SmartMedia card used for external program storage and OS updates for this unit.
5. AC500-S: The modern Relion-era successor for high-integrity safety PLC applications.

Technical specifications and legacy support for the ABB GJR5253100R2360 are maintained within our specialized industrial automation inventory.
