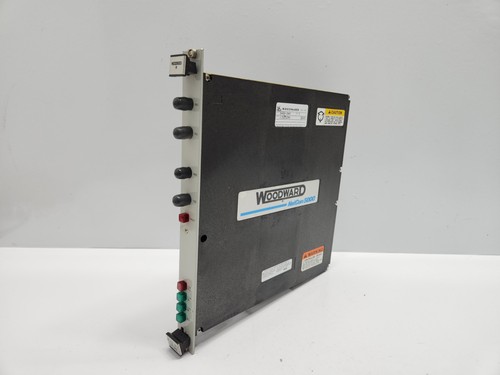

The Woodward 5466-340 is a specialized Fiber Optic Foot Receiver Module designed for the MicroNet and MicroNet Plus distributed control platforms. This module acts as a high-speed communication bridge, receiving optical signals from a central CPU or transceiver and converting them into electrical data for local I/O modules within a remote chassis. By utilizing fiber optic technology, the 5466-340 provides complete electrical isolation and immunity to electromagnetic interference (EMI) and radio frequency interference (RFI), making it an essential component for synchronized turbine control and power generation applications in electrically noisy industrial environments.

Product Q&A

Q1: What is the primary advantage of using the 5466-340 fiber optic module? A1: The main benefit is the total galvanic isolation between control racks. This prevents ground loops and protects the control system from high-voltage surges or lightning strikes that might otherwise travel through copper communication cables.

Q2: Does this module require manual configuration or addressing? A2: While the hardware itself is largely “plug-and-play” regarding signal conversion, the MicroNet system software must be configured to recognize the remote “foot” location. You should also ensure the fiber optic cables are clean and have minimal bend radius violations for optimal signal integrity.

Q3: How do the status LEDs on the front panel assist in troubleshooting? A3: The LEDs provide immediate visual feedback on the health of the fiber link. A steady “Link” LED indicates a valid optical signal is being received, while a “Fault” or “Tx/Rx” error light can indicate a broken fiber, dirty connector, or a failure in the transmitting module.
