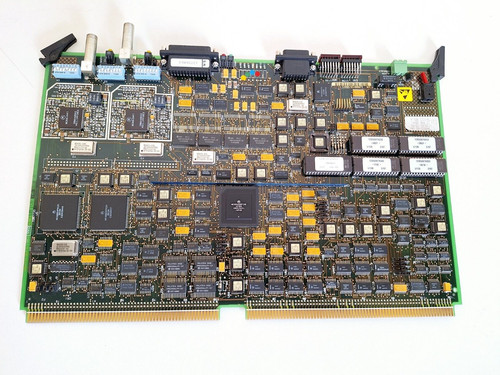

The Fisher Rosemount CL7701X1-A1 (part number 32B7734X022-80) is a high-reliability Printed Wire Board (PWB) assembly used within the legacy RS3 Distributed Control System (DCS). This “UNMP” (Universal Multi-Processor) board serves as a core processing unit designed to handle complex control algorithms and data management tasks. It is engineered to provide the stable, real-time performance required for continuous process industries, ensuring seamless communication between field I/O and the operator console.



Product Technical Description

This assembly features a multi-layered circuit board populated with industrial-grade microprocessors and high-density memory modules. As a “Universal” processor board, it is capable of being configured for various roles within the RS3 architecture, including regulatory control and logic execution. The “X1-A1” revision denotes specific hardware enhancements and component upgrades designed to improve thermal stability and signal integrity. The board includes onboard diagnostics and status indicators to assist maintenance personnel in quickly identifying hardware health.



Product Datasheet & Parameters

• Model Number: CL7701X1-A1
• Part Number: 32B7734X022-80
• System Compatibility: Fisher Rosemount RS3 DCS
• Board Type: UNMP (Universal Multi-Processor) PWB Assembly
• Processor Architecture: Multi-processor design for distributed task execution
• Memory Configuration: High-retention NVRAM and System RAM
• Revision Level: A1 (Advanced hardware revision)
• Connectivity: Proprietary RS3 Control Bus interface
• Power Requirements: Supplied via RS3 System Backplane
• Mounting: Plug-in module for standard RS3 Card Cages



Country of Origin

This PWB assembly was manufactured by Fisher-Rosemount (now part of Emerson Process Management) in the United States (USA).



Application Fields

• Oil Refining: Managing complex distillation and cracking unit control loops.
• Chemical Manufacturing: Precise execution of batch processing and safety interlocks.
• Power Generation: Monitoring boiler controls and auxiliary plant systems.
• Pulp and Paper: Controlling large-scale paper machines and chemical recovery boilers.
• Pharmaceuticals: Ensuring strict adherence to process parameters in regulated environments.

Product Usage Instructions

The CL7701X1-A1 is a static-sensitive electronic assembly. Always wear a grounded ESD (Electrostatic Discharge) wrist strap when handling the board. Before installation, verify that the card cage slot is clean and free of debris. Slide the board into the designated slot until the connectors are fully seated, then secure the card using the front-panel captive screws. Configuration of the UNMP functions is typically performed through the RS3 System Configuration software; ensure the firmware version on the board is compatible with your current system software release.



Common Questions & Answers (Q&A)

Q: Can I swap a CL7701X1-A1 with an older CL7701 version? A: While they are part of the same family, the “X1-A1” revision often includes hardware fixes that may require specific firmware. It is recommended to verify compatibility with your system’s “software level” before replacement.

Q: What does the “UNMP” designation stand for? A: UNMP stands for Universal Multi-Processor, indicating the board’s ability to handle multiple processing threads simultaneously for distributed control tasks.

Q: Does this board require a separate battery for memory backup? A: Many RS3 processor boards utilize onboard lithium batteries or supercapacitors to maintain configuration data. Check the battery voltage during routine maintenance to prevent data loss during power cycles.

Q: How do I know if the board has failed? A: The front panel typically features a set of LEDs. A steady “Fault” light or the absence of a “Run” light usually indicates a hardware failure or a boot-up error.
