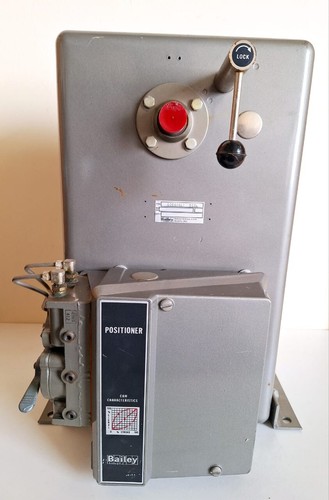

The Bailey ACO404A1 (often associated with the 200N series) is a high-performance pneumatic power positioner designed to accurately position double-acting or single-acting cylinders and diaphragm actuators. It serves as a mechanical link between a control signal (typically pneumatic) and a physical actuator, ensuring that the output shaft or lever reaches a specific position regardless of external load variations or friction. The ACO404A1 is renowned for its rugged construction and ability to provide high-torque modulation in demanding industrial environments.

Product Parameters and Technical Specifications

The ACO404A1 is engineered for precision and durability under continuous operating cycles.

• Model Number: ACO404A1 / 200N Series
• Input Signal: Standard pneumatic signal (typically 3-15 psi or 0.2-1.0 bar)
• Supply Pressure: Maximum of 100 psi (6.9 bar)
• Output Force: Up to 200 lbs (890 N) depending on the integrated cylinder size
• Enclosure: Heavy-duty cast aluminum with corrosion-resistant coating
• Ambient Temperature: -40°F to 180°F (-40°C to 82°C)
• Stroke Length: Adjustable via feedback linkage (specific to actuator pairing)



Product Datasheet Summary

The ACO404A1 datasheet highlights its “Characterizable” nature, allowing the user to modify the relationship between the input signal and the output position by changing the internal feedback cam. This allows for linear, square root, or custom flow characteristics when used on control valves. The unit features high-gain pilot valves that respond to minute changes in the control signal, providing rapid and stable positioning. Its dual-acting capability means it can provide powered movement in both directions, making it ideal for large dampers or heavy louvers.



Country of Origin

This product is manufactured in the USA, maintaining the industrial heritage and engineering standards of the Bailey Controls Company (now part of the ABB group).



Application Fields

The Bailey 200N series is a staple in heavy industry for the following uses:

• Power Plants: Controlling secondary air dampers and fan inlet vanes.
• Steel Mills: Positioning heavy combustion air valves and flue gas dampers.
• Pulp & Paper: Managing large liquid flow control valves and steam regulators.
• Chemical Processing: Operating high-torque quarter-turn or linear actuators in corrosive atmospheres.



Product Usage Instructions

1. Mounting: Secure the positioner to a rigid bracket. Ensure the feedback linkage is aligned with the actuator shaft to prevent side-loading.
2. Pneumatic Connections: Connect clean, dry, instrument-grade air to the “Supply” port. Connect the control signal to the “Instrument” port.
3. Calibration: Apply a 3 psi signal and adjust the zero-adjustment screw until the actuator is at the start position. Apply 15 psi and adjust the span until it reaches full travel.
4. Lubrication: Periodically check the pilot valve and linkage pivot points. Use only manufacturer-recommended light lubricants to ensure smooth operation.



Technical Description

The ACO404A1 operates on a force-balance principle. The pneumatic input signal acts on a diaphragm, creating a force that is opposed by a feedback spring connected to the actuator’s position. When the forces are unbalanced, the pilot valve shifts, directing supply air to one side of the actuator cylinder while venting the other. As the actuator moves, the feedback linkage changes the tension on the spring until the forces balance again, at which point the pilot valve returns to the neutral position, locking the actuator in place.



Q&A – Frequently Asked Questions

Q: Can the ACO404A1 be converted to an Electronic (4-20mA) input? A: Yes, this is commonly done by mounting a Bailey or ABB I/P (current-to-pneumatic) transducer to the input port, converting the electronic control signal into the 3-15 psi signal the positioner requires.

Q: What happens if the supply air fails? A: Depending on the system setup, the positioner can be configured for “Fail-Safe” operation where the actuator moves to a fully open or fully closed position, or “Fail-Last” where it locks in its current position.

Q: Is this model compatible with the AP series? A: The ACO (200N) is a dedicated power positioner, whereas the AP series typically refers to positioners mounted on top of smaller diaphragm valves. They serve similar functions but for different torque/force scales.

Q: Where can I source Bailey ACO series parts and kits? A: You can find the Bailey ACO404A1 and various 200N series rebuild kits through specialized industrial process control suppliers.



Recommended Similar Models

1. Bailey ACO404A2 – A variant often featuring different feedback cam or linkage configurations.
2. Bailey ACO808 – A larger capacity power positioner for even higher torque demands.
3. ABB TZIDC – A modern digital intelligent positioner for upgrading pneumatic systems to electronic control.
4. Bailey AP10 – A compact pneumatic positioner for standard control valve applications.
5. Bailey 100N – The smaller brother to the 200N series, designed for lighter-duty dampers.
