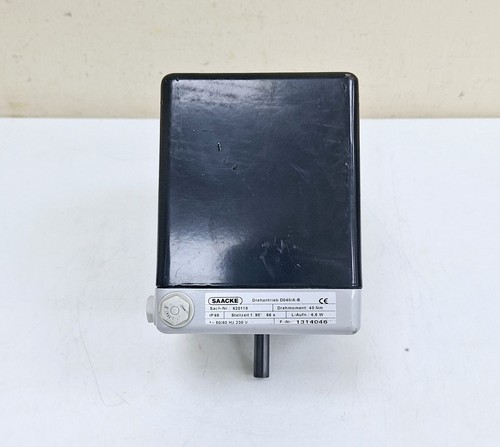

The SAACKE D040/A-B (Part Number 620118) is a high-precision industrial servo motor controller designed specifically for burner and combustion control systems. This heavy-duty actuator provides a substantial 40 Nm of torque, allowing for the precise positioning of air dampers, fuel valves, and flue gas recirculating units. Engineered by SAACKE, a global leader in combustion technology, this unit ensures optimal fuel-to-air ratios to maximize efficiency and minimize emissions in industrial boiler environments.

Product Datasheet & Technical Specifications

This actuator is built to withstand the thermal and mechanical stresses of combustion plants:

• Model Number: D040/A-B
• Part Number: 620118
• Torque Output: 40 Nm
• Input Voltage: 230V AC (Single Phase)
• Frequency: 50/60 Hz
• Rotation Angle: Typically adjustable up to 90° or 160° depending on internal cam settings
• Enclosure Rating: IP54 or higher (suitable for boiler room environments)
• Duty Cycle: Designed for continuous modulating control
• Control Feedback: Integrated potentiometers or limit switches for position verification



Country of Origin

This combustion control component is manufactured in Germany, reflecting SAACKE’s commitment to precision engineering and stringent European safety standards for thermal energy systems.



Application Fields

The D040/A-B is a vital component in modern thermal process plants:

• Industrial Burners: Controlling the mechanical linkage for gas and oil combustion.
• Boiler Control Systems: Managing primary and secondary air intake dampers.
• Steam Generators: Ensuring precise fuel metering for consistent steam pressure.
• Waste Heat Recovery: Regulating bypass dampers in heat exchanger units.
• Chemical Processing: Providing accurate valve positioning for high-temperature reactors.



Product Instructions & Technical Notes

When installing the SAACKE D040/A-B, ensure the mechanical linkage is properly aligned to avoid binding, which could exceed the 40 Nm torque limit and cause internal gear wear. The 230V supply must be stable and properly fused. Before commissioning, manually verify the travel limits of the damper or valve to prevent the motor from stalling against a physical stop. The internal limit switches and feedback potentiometers should be calibrated according to the burner management system’s (BMS) requirements to ensure accurate “low-fire” and “high-fire” positioning.



Q&A – Frequently Asked Questions

Q1: Can this motor be used for both gas and oil burners? A: Yes, the D040/A-B is a universal actuator that can be linked to air dampers or fuel valves for various fuel types, provided the torque requirement does not exceed 40 Nm.

Q2: What is the purpose of the “A-B” designation? A: In SAACKE nomenclature, these suffixes typically refer to the specific internal cam configuration or the type of feedback potentiometer installed (e.g., 1k Ohm vs 5k Ohm).

Q3: Is it possible to manually override the motor? A: Most SAACKE D-series actuators include a manual release or a hand-wheel interface to allow for emergency positioning or maintenance checks when power is disconnected.

Q4: How do I troubleshoot a “Positioning Error” in the burner controller? A: First, check the feedback potentiometer for “dead spots” or resistance fluctuations. Secondly, verify that the 230V signal is reaching the motor terminals during a call for modulation.



Similar Model Recommendations

1. SAACKE D040/A (Basic version without B-revision features)
2. SAACKE D030 series (30 Nm torque variant)
3. SAACKE D050 series (Higher torque 50 Nm variant)
4. SAACKE 620117 (Alternative hardware configuration)
5. Honeywell Controlli Series (Similar industrial combustion actuators)
