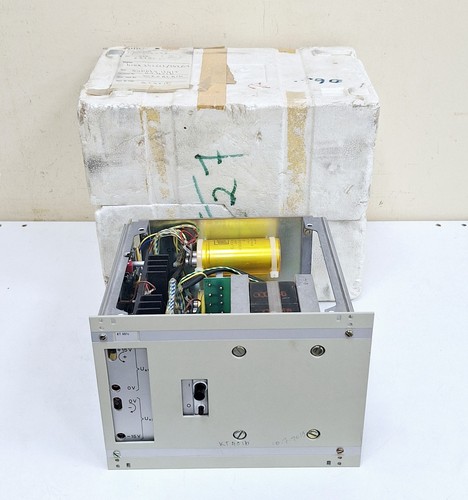

The BBC Brown Boveri AR 206288 R3 (Model KT 401c) is a high-performance power supply unit designed for industrial automation and control systems. Originally engineered by Brown, Boveri & Cie (which later merged to become ABB), this unit is a staple in legacy power plant and heavy industrial installations. It serves as a central power distribution module, converting incoming voltage into stable regulated power for internal logic cards, rack systems, and field sensors.



Product Datasheet & Technical Specifications

This supply unit is built to provide consistent power in high-interference environments:

• Model Number: AR 206288 R3
• Series: KT 401c
• Device Type: Regulated DC Power Supply Unit
• Input Voltage: Typically configurable for standard industrial AC grids (110V/220V)
• Output Voltage: Multi-rail output (often providing specific voltages required for BBC Procontic or Advant logic)
• Mounting: Rack-mount design for integration into standardized control cabinets
• Revision: R3 (denotes improved internal hardware reliability and heat dissipation)
• Cooling: Natural convection or rack-assisted cooling



Country of Origin

This unit was primarily manufactured in Switzerland or Germany, reflecting the precision engineering standards of the original BBC Brown Boveri factories before the ABB merger.



Application Fields

The KT 401c Supply Unit is essential for maintaining system uptime in critical sectors:

• Power Generation: Powering excitation and control logic in hydroelectric and thermal power plants.
• Railway Systems: Supporting signal and control infrastructure for rolling stock and trackside electronics.
• Grid Protection: Providing power to protective relay racks and telemetry units.
• Heavy Manufacturing: Supporting legacy PLC and DCS systems in steel and paper mills.
• Marine Engineering: Integrated into shipboard power management and engine control consoles.



Product Instructions & Technical Notes

When installing the BBC Brown Boveri AR 206288 R3, ensure the rack orientation allows for vertical airflow to prevent the aging of internal electrolytic capacitors. Before commissioning, it is vital to check the input voltage jumpers to ensure they match your local power supply. Due to the vintage of the KT 401c series, if a unit has been out of service for several years, it should be “soft-started” using a variable transformer (Variac) to reform the capacitors and prevent catastrophic failure. Ensure the backplane connector is clean and free of oxidation to maintain low-resistance power delivery to the rest of the rack.

Q&A – Frequently Asked Questions

Q1: What is the difference between R2 and R3 revisions? A: The R3 revision typically includes upgraded semiconductor components and improved circuit protection features to extend the service life of the unit in high-heat environments.

Q2: Can this unit replace a KT 401b model? A: In most cases, yes. The “c” designation usually indicates a later, more efficient hardware version that maintains backward compatibility with the mounting and electrical interface of the earlier “b” series.

Q3: How do I verify the output voltage? A: Testing points are usually located on the front panel or the rear terminal block. Use a calibrated multimeter to check for steady DC voltage without significant ripple or noise.

Q4: Is this unit still supported by ABB? A: This is considered a legacy/classic product. While new production has ceased, it is highly sought after as a spare part for maintaining existing installations without needing a full system upgrade.



Similar Model Recommendations

1. BBC Brown Boveri AR 206288 R2 (Earlier revision)
2. BBC Brown Boveri KT 401b (Legacy variant)
3. ABB SD821 (Modern 800xA power supply alternative)
4. BBC Brown Boveri KT 402 series (High-power output variant)
5. BBC Brown Boveri Procontic Power Modules
