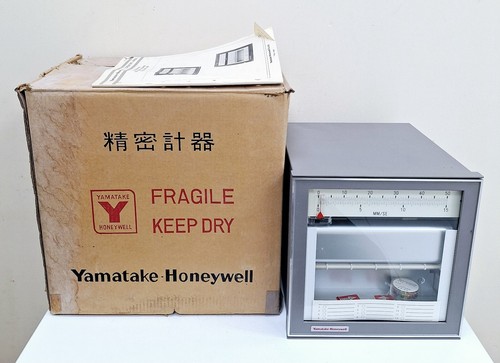

The Yamatake Honeywell NRM90Z-5213F-R-X is a precision industrial strip chart recorder designed for the continuous monitoring and documentation of process variables. Produced during the era of the Yamatake and Honeywell partnership (now Azbil), this NRM90 series recorder is highly regarded for its mechanical reliability and accuracy in harsh industrial environments. It provides a permanent, physical record of data such as temperature, pressure, flow, and level, making it indispensable for quality control and regulatory compliance.

Product Datasheet & Technical Specifications

The NRM90Z-5213F-R-X is engineered for multi-channel data acquisition:

• Model Number: NRM90Z-5213F-R-X
• Recorder Type: Strip Chart (Folding or Roll paper compatible)
• Number of Points: Multi-point recording (typically 6 or 12 points using a dot-printing mechanism)
• Chart Width: 100mm (standard for NRM90 series)
• Input Signal: Universal inputs (Thermocouples, RTDs, DC Voltage, and mA with shunt)
• Power Supply: 100V to 240V AC, 50/60 Hz
• Recording Speed: Adjustable chart speeds (e.g., 10mm/h to 1500mm/h)
• Accuracy: ±0.5% of span for most industrial inputs



Country of Origin

This instrument was manufactured in Japan by Yamatake-Honeywell Co., Ltd. (now Azbil Corporation), reflecting Japanese precision engineering and high-quality electronic standards.



Application Fields

The NRM90Z-5213F-R-X is a vital tool for long-term data logging:

• Heat Treatment: Monitoring furnace temperatures for aerospace and automotive parts.
• Pharmaceuticals: Documenting sterilization cycles and cleanroom environments.
• Food & Beverage: Recording pasteurization temperatures and cold storage conditions.
• Water Treatment: Tracking pH levels and flow rates in municipal facilities.
• Chemical Plants: Logging reactor pressures and exothermic reaction curves.



Product Instructions & Technical Notes

When setting up the Yamatake Honeywell NRM90Z-5213F-R-X, ensure the unit is mounted in a panel that is free from excessive vibration to prevent “shaky” chart traces. Before loading the chart paper, verify the ink ribbon or dot-printing cartridge is fresh to ensure clear, legible data points. The “Z” and “F-R-X” suffixes in the model number indicate specific factory options—such as alarm relays, digital displays, or specialized communication ports. Periodically clean the paper drive rollers with a dry cloth to prevent paper jams. If the recorder has been powered down for an extended period, verify the internal battery or capacitor status for memory retention of configuration settings.



Q&A – Frequently Asked Questions

Q1: Can I use different thermocouple types on different channels? A: Yes, the NRM90 series typically allows for independent configuration of each channel’s input type through the internal programming menu or jumpers.

Q2: What is the benefit of a “Z” model recorder? A: In Yamatake nomenclature, the “Z” often refers to an upgraded digital display or an enhanced microprocessor control unit compared to purely analog legacy models.

Q3: Is the chart paper still available for this model? A: Yes, standard 100mm strip chart paper (Roll or Z-fold) remains widely available from industrial supply specialists and Azbil distributors.

Q4: How do I change the chart speed? A: Chart speed is usually adjusted via a digital keypad on the front panel or via internal gear/switch settings depending on the specific hardware generation of the NRM90Z.
