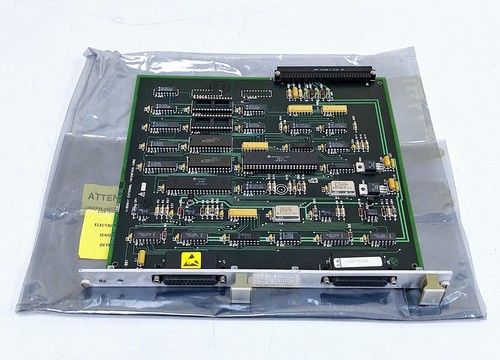

The Fisher-Rosemount S550012XB12 (also identified by part numbers CL6921X1-A5 and 41B5847) is a high-performance communication interface module designed for the PROVOX distributed control system (DCS). This module serves as a critical bridge between the central control processors and field-mounted devices or peripheral subsystems. It facilitates high-speed data exchange, ensuring that real-time process variables are accurately transmitted to the operator console for monitoring and control.

Product Parameters and Technical Specifications

This interface is engineered to maintain data integrity in complex industrial network topologies.

• Model Number: S550012XB12 / CL6921X1-A5
• Part Number: 41B5847
• Series: PROVOX DCS Series
• Interface Type: Serial/Network Interface (Data Highway compatible)
• Operating Voltage: Typically 5V DC / 24V DC (Logic and Interface levels)
• Mounting: Standard PROVOX rack-mount or sub-chassis installation
• Communication Rate: High-speed proprietary bus synchronization
• Status Indicators: Front-panel LEDs for Power, Transmit (TX), Receive (RX), and Fault status



Product Datasheet Summary

The S550012XB12 datasheet highlights its “Hot-Swappable” design, allowing for the replacement of the module without shutting down the entire control rack—a vital feature for continuous process industries. The “CL6921X1-A5” coding refers to the specific hardware revision and firmware compatibility layer, ensuring seamless integration with late-generation PROVOX controllers. The module features integrated surge protection and noise filtering, making it highly resistant to electromagnetic interference (EMI) commonly found in large-scale industrial environments.



Country of Origin

This precision DCS component was manufactured in the USA, reflecting the long-standing engineering heritage of Fisher-Rosemount (now Emerson Automation Solutions).



Application Fields

The PROVOX interface modules are staples in large-scale legacy automation systems:

• Oil & Gas Refineries: Managing data flow between distillation units and the central control room.
• Chemical Processing: Coordinating reactor sequences and safety interlock data.
• Pulp & Paper Mills: Interfacing with distributed I/O across large-scale paper machines.
• Power Generation: Monitoring turbine and boiler parameters via the DCS highway.



Product Usage Instructions

1. Installation: Align the module with the card guides in the PROVOX rack. Firmly seat the module into the backplane connector and tighten any securing screws to ensure a proper ground.
2. Configuration: Use the PROVOX configuration software (e.g., ENVOX) to assign the correct node address and communication parameters to the module.
3. Wiring: Ensure that all communication cables are shielded and that the shields are grounded at only one end to prevent ground loops.
4. Diagnostics: Regularly monitor the status LEDs. A steady “Fault” light typically indicates a hardware failure or a configuration mismatch that requires an soft-reset or replacement.



Technical Description

The S550012XB12 operates as a sophisticated protocol converter. It takes the low-level signals from the backplane and encapsulates them into the high-level communication protocol required for the DCS data highway. It features an onboard microprocessor that handles error-checking and packet-retransmission logic, offloading these tasks from the main control processor to maintain high system throughput. The “XB12” designation signifies a specific version of the interface board with enhanced memory or specialized communication buffers.



Q&A – Frequently Asked Questions

Q: Is this module compatible with modern DeltaV systems? A: Directly, no. The S550012XB12 is a PROVOX-specific module. However, it is often used in systems that utilize Emerson “Migration” kits to bridge PROVOX I/O into a modern DeltaV environment.

Q: Can this module be used for Modbus communication? A: While primarily designed for the PROVOX highway, specific variants of the CL6921 series can be configured for serial RS-232/485 communication with third-party Modbus devices.

Q: What should I do if the “RX” LED is not blinking? A: This indicates a loss of incoming data. Check the integrity of the network cabling and verify that the transmitting node (upstream device) is powered and configured correctly.

Q: Where can I source the S550012XB12 and other PROVOX parts? A: You can find the Fisher-Rosemount S550012XB12 and other legacy DCS components through specialized industrial automation and renewal parts suppliers.



Recommended Similar Models

1. Fisher-Rosemount S550012XB11 – An earlier version of the interface module with similar basic functionality.
2. Fisher-Rosemount CL6921X1-A1 – A variant designed for different communication protocols or baud rates.
3. Fisher-Rosemount 41B5847-X02 – A specific revision or replacement part number for the same interface series.
4. Fisher-Rosemount S550011 – A related processor or controller module within the PROVOX family.
5. Emerson DeltaV M-Series – The modern alternative for users looking to upgrade from legacy PROVOX systems.
