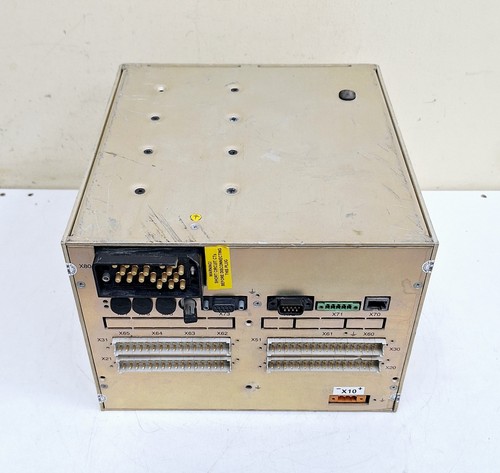

The ABB 1VCF752000, specifically configured as 76S3N55N35NSNN1, is a high-performance REF542plus Base Unit. This module is part of ABB’s “Industrial IT Enabled” ecosystem, acting as a multifunctional feeder terminal for medium-voltage switchgear. It integrates protection, control, measurement, and monitoring functions into a single, modular digital platform. The REF542plus is designed to bridge the gap between primary power equipment and digital substation automation systems, providing high-speed processing for complex protection algorithms.



Technical Description & Parameters

The 1VCF752000 (76S3N55N35NSNN1) utilizes a sophisticated digital signal processor (DSP) to handle real-time power system data.

• Base Unit Part Number: 1VCF752000
• Specific Configuration: 76S3N55N35NSNN1
• Series: REF542plus (Feeder Terminal)
• Power Supply: Wide-range auxiliary input (typically 110-240V DC or AC)
• Analog Inputs: Designed for use with both conventional CT/VT and non-conventional sensors (Rogowski coils and voltage dividers).
• Binary I/O: Modular slots populated based on the 76S3... configuration code for digital inputs and outputs.
• Communication: Industrial IT Enabled; supports protocols such as IEC 61850, Modbus, and LON.
• Mounting: Standard 19-inch sub-rack mounting for switchgear control compartments.



Product Technical Description

The REF542plus Base Unit operates as a programmable logic controller (PLC) specialized for electrical protection. It manages complex trip logic, interlocking, and auto-reclosing sequences. The “Industrial IT” designation ensures compatibility with ABB’s 800xA system and Aspect Object technology, facilitating seamless data integration. The hardware is built with high electromagnetic compatibility (EMC) to ensure stable operation in environments with high switching transients and electrical noise.



Product Datasheet Essentials

The configuration string 76S3N55N35NSNN1 defines the internal hardware build-out. This includes the specific number of analog measurement channels, the count of binary input/output boards, and the communication interface type. It features an internal “Watchdog” circuit that continuously monitors the CPU health. The unit also includes a dedicated front-facing optical or RS232 maintenance port for local configuration and diagnostic retrieval using ABB’s proprietary tools.



Country of Origin

Germany (ABB AG / Power Technologies)



Application Fields

The 1VCF752000 Base Unit is widely deployed in demanding electrical infrastructures:

• Smart Substations: Serving as a primary Intelligent Electronic Device (IED) for feeder protection.
• Industrial Plants: Protecting large motors and transformers in chemical, mining, and metal facilities.
• Renewable Energy: Managing grid connections for wind farms and solar installations.
• Rail Infrastructure: Providing reliable power management for traction power systems.

Product Usage Instructions

1. Installation: Insert the 1VCF752000 Base Unit into the REF542plus rack. Ensure the grounding screw at the rear is securely bonded to the substation ground bus.
2. Wiring: Connect measurement signals from CTs/VTs and binary control lines to the rear terminal blocks. Verify that CT polarity is correct to ensure accurate directional protection.
3. Configuration: Use PCM600 or the REF542plus Configuration Tool to define protection curves (Overcurrent, Earth Fault, etc.) and program the interlocking logic.
4. HMI Integration: Connect the Base Unit to the local HMI display panel using the designated shielded cable.
5. Commissioning: Perform secondary injection testing to verify that the relay operates correctly at programmed thresholds before energizing the feeder.



Common Questions & Answers (Q&A)

Q: Can I upgrade the I/O of an existing 1VCF752000? A: Yes. The REF542plus is modular. You can add or swap I/O modules in the internal slots, though the software configuration must be updated to recognize the new hardware layout.

Q: What is the benefit of using Rogowski coils with this unit? A: Rogowski coils do not saturate like traditional iron-core CTs, allowing the REF542plus to accurately measure extremely high fault currents for superior protection.

Q: Is this unit compatible with IEC 61850 communication? A: Yes, provided the specific communication module (often defined by the end of the configuration string) is installed, the unit can integrate into modern IEC 61850 networks.
