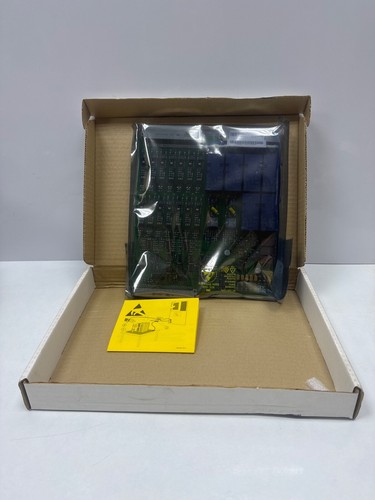

The ABB 1VCF701839801 (often identified by its printed circuit assembly number 701839/801) is a high-reliability Binary I/O expansion board utilized in ABB Transmission and Distribution (T&D) equipment. This PCA is a core component within digital relay systems and control units, such as the REF or REM series. It manages the digital logic interface between the primary switchgear and the secondary control system, handling status feedback and command execution for circuit breakers and disconnectors.



Technical Specifications

• Model Number: 1VCF701839801
• PCA Number: 701839/801
• Revision: REV 1.4
• Module Type: Binary Input/Output (I/O 2)
• Dimensions: 210mm x 110mm x 25mm
• Weight: 0.35 kg (0.77 lbs)
• Country of Origin: Finland / Estonia
• Input Voltage Range: Usually 24V DC to 250V DC (Software/Hardware configurable)
• Output Type: Electromechanical power relays for trip and signal circuits



Application Fields

This Binary I/O board is designed for rugged industrial and utility environments, including:

• Substations and Power Distribution Centers
• Medium Voltage Switchgear Control
• Protection and Control Relays (ABB Relion series)
• Industrial Motor Control Centers (MCC)
• Renewable Energy Grid Integration



Product Usage Instructions

1. Safety Protocol: Before installation or removal, ensure the protection relay or control unit is fully de-energized. High-voltage DC inputs may be present on the terminal terminals.
2. Slot Identification: Insert the ABB 1VCF701839801 into the correct expansion slot of the relay chassis. Revision 1.4 must be compatible with the backplane version and existing firmware.
3. Field Wiring: Connect digital inputs (e.g., breaker position status) and relay outputs (e.g., trip commands) to the rear connectors. Ensure the wire gauge is appropriate for the current rating of the output relays.
4. Configuration: Use ABB PCM600 or equivalent software to map the physical I/O points to the logic application. Test the I/O toggling in “Test Mode” before putting the unit into active service.

Frequently Asked Questions (Q&A)

Q: Can I replace an older revision board with Revision 1.4? A: Generally, yes. ABB boards are often backward compatible. However, Revision 1.4 may include updated relay components with higher switching life cycles. Always check the firmware requirements in the relay manual.

Q: What is the difference between Binary Input and Binary Output on this board? A: Binary Inputs detect the “On/Off” status of external contacts (like a limit switch), while Binary Outputs are the board’s internal relays that “act” to open or close an external circuit (like a breaker trip coil).

Q: Does the board require periodic calibration? A: No, digital I/O boards do not require calibration like analog boards. However, the contact resistance of the output relays should be checked during major maintenance intervals.



Product Industry News

ABB’s Transmission and Distribution sector continues to lead the shift toward “Digital Substations.” Boards like the 701839/801 are being integrated into systems that support IEC 61850 communication protocols, allowing for more efficient “GOOSE” messaging. As power grids become smarter, ABB is focusing on enhancing the electromagnetic compatibility (EMC) of these PCAs to ensure they remain stable in environments with high levels of electrical noise generated by solar inverters and EV charging infrastructure.



Similar Model Recommendations

• ABB 1VCF701839802: A variation of the I/O board with different input voltage thresholds.
• ABB 1VCF750174R0803: A high-speed binary input module for ultra-fast protection.
• ABB 1VCF701841801: A complementary Power Supply module for T&D relays.
• ABB 1VCF701838801: An Analog Input module for CT/VT measurement.
• ABB 1VCF023448R0101: A communication interface board supporting Modbus or DNP3.
