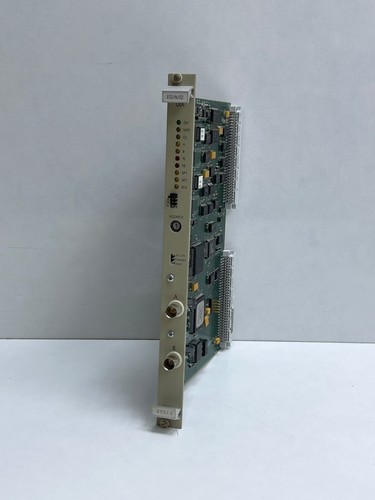

The Honeywell HW-UIXY-2 is an advanced UIX (Universal Input/Output Expansion) board designed for the Honeywell Excel or Optimizer series building automation systems. This specific model, XIO/N/02, provides a scalable interface for integrating diverse field devices into a centralized control architecture. It is engineered to handle high-density point counts while maintaining high-speed communication over industrial-grade buses, ensuring that complex building management logic is executed with minimal latency.



Technical Specifications

• Model Number: HW-UIXY-2
• Module Type: XIO/N/02 UIX Expansion Board
• Communication Interface: RS-485 / Sylk™ Bus compatible
• I/O Configuration: Universal inputs/outputs (configurable as Analog or Digital)
• Dimensions: Approximately 7.1 inches x 4.8 inches (Standard Honeywell large footprint)
• Weight: 0.52 kg (1.15 lbs)
• Country of Origin: USA / United Kingdom
• Operating Voltage: 24V AC/DC
• Encryption: Supports AES 256-bit data encryption (on compatible Series 3 controllers)



Application Fields

The UIX series boards are critical for modernizing large-scale facility controls, including:

• HVAC Control: Managing dampers, valves, and variable frequency drives (VFDs).
• Integrated Building Management (BMS): Serving as a data bridge for Niagara-based supervisors.
• Energy Metering: Aggregating pulse or analog signals from kWh and water meters.
• Clean Room Monitoring: Precise sensing of pressure, temperature, and humidity for pharmaceutical labs.
• Commercial Lighting: Interface for DALI or relay-based lighting control circuits.



Product Usage Instructions

1. Installation: Mount the board on a standard DIN rail or directly to the backplane of the control cabinet. Use the Honeywell UIX removable terminal blocks for easier wiring and maintenance.
2. Addressing: Set the hardware address using the onboard DIP switches or rotary dials before powering the unit. Ensure the address matches the configuration in the Niagara or Care programming tool.
3. Wiring: Utilize twisted-pair shielded cable for the RS-485 communication trunk. Ensure the end-of-line (EOL) resistor is enabled only on the last physical device in the daisy chain to prevent signal reflections.
4. Configuration: Use the Honeywell Optimizer or Niagara Workbench to define the Universal I/O types (e.g., 0-10V, 4-20mA, or Dry Contact). Live debugging can be performed via the integrated Bluetooth or service port if available on the master controller.

Frequently Asked Questions (Q&A)

Q: What does the “UIX” designation stand for? A: UIX stands for Universal Input/Output Expansion, meaning each point on the board can be software-configured to act as either an input or an output, providing maximum flexibility for field wiring.

Q: Is this board compatible with legacy Excel 500/800 systems? A: Yes, the HW-UIXY-2 is designed with a “Versatile Interoperability” footprint, allowing it to function as a drop-in replacement or expansion for many Series 2 and newer Honeywell I/O deployments.

Q: Can this board operate standalone? A: No, the UIX board is an expansion module. it requires a master plant controller (like the Excel 800 or Honeywell Optimizer) to process logic and manage communications.



Product Industry News

In 2026, Honeywell continues to advance its “Building Automation” segment by integrating AI-driven diagnostics into its I/O hardware. The HW-UIXY-2 is now frequently deployed in “Smart Room” configurations that utilize the Sylk™ bus for polarity-insensitive wiring, significantly reducing installation errors. Honeywell’s recent collaboration with cloud-based security platforms has also led to enhanced firmware for these boards, allowing them to participate in hardware-level encryption to protect critical building infrastructure from cybersecurity threats.



Similar Model Recommendations

• Honeywell HW-UIXY-1: The smaller footprint version with reduced I/O density.
• Honeywell XIO/N/10: A specialized version of the UIX board with specific relay configurations.
• Honeywell DO-REL-4: A dedicated 4-channel relay output expansion module.
• Honeywell UN-RS0844: A standalone unitary controller with integrated I/O.
• Honeywell TR42: A Sylk™-enabled wall module that interfaces directly with UIX-capable controllers.
