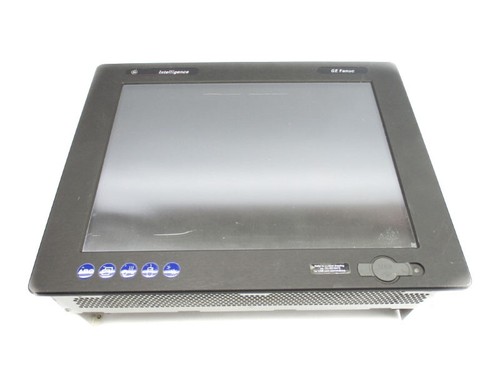

The GE Fanuc DV-OPC5315 is a high-performance industrial operator interface designed to provide a robust human-machine interface (HMI) for complex automation systems. Engineered for durability in harsh factory environments, this unit features a high-resolution display and integrated processing power to handle real-time data visualization and machine control. It allows operators to monitor system health, adjust parameters, and respond to alarms with precision and speed.



Technical Datasheet

Display and Performance The DV-OPC5315 is equipped with a vivid 15-inch industrial-grade touchscreen. It provides high brightness and wide viewing angles, ensuring clear visibility even in challenging lighting conditions. The internal hardware is optimized to run visualization software with minimal latency, facilitating smooth transitions between control screens.

Physical and Manufacturing Details

• Dimensions: 39.5 cm x 31.2 cm x 8.5 cm
• Weight: 6.4 kg
• Country of Origin: USA
• Front Panel Protection: NEMA 4/IP65 (Water and dust resistant)
• Power Input: 24V DC / 100-240V AC (Model dependent)



Application Fields

The DV-OPC5315 is widely deployed across various demanding industries:

• Aerospace: Monitoring assembly tolerances and environmental testing chambers.
• Pharmaceuticals: Managing cleanroom automation and batch reporting.
• Food Processing: Controlling automated mixing and high-volume bottling lines.
• Energy Management: Visualizing power grid distribution and renewable energy metrics.

Product Usage Instructions

When installing the DV-OPC5315, ensure the cutout in the control cabinet matches the specified mounting dimensions to maintain the NEMA 4 seal. Use the included mounting clips to secure the unit firmly against the gasket. For communication, connect the industrial Ethernet or Serial ports to your PLC network. It is recommended to use a stylus or clean fingers on the touchscreen to prevent surface damage. Periodically back up the application project via the integrated USB or CF card slots to ensure quick recovery in the event of a system update.



Frequently Asked Questions (Q&A)

Q: Can this unit be used in outdoor environments? A: While the front panel is IP65 rated against moisture, the unit should be housed in a temperature-controlled enclosure if used outdoors to protect against extreme UV exposure and temperature fluctuations.

Q: Does it support third-party PLC drivers? A: Yes, the DV-OPC series is designed to be versatile, supporting communication drivers for a wide range of industrial protocols, including those from GE, Allen-Bradley, and Siemens.

Q: Is the touchscreen resistive or capacitive? A: This model typically utilizes a heavy-duty industrial resistive touchscreen, which allows operators to use the interface while wearing gloves.



Industry News & Updates

The industrial HMI market has seen a surge in demand for panels like the DV-OPC5315 that can act as “Edge” devices. As more manufacturing facilities move toward Industry 4.0, these operator interfaces are being updated with advanced cybersecurity firmware to protect local machine data from network vulnerabilities. Analysts have noted that the 15-inch form factor remains the “gold standard” for complex machinery control, as it balances detailed graphical representation with cabinet space efficiency. Furthermore, the availability of high-quality replacement parts for the DV-OPC series ensures that these units remain a cost-effective choice for long-term facility maintenance strategies.
