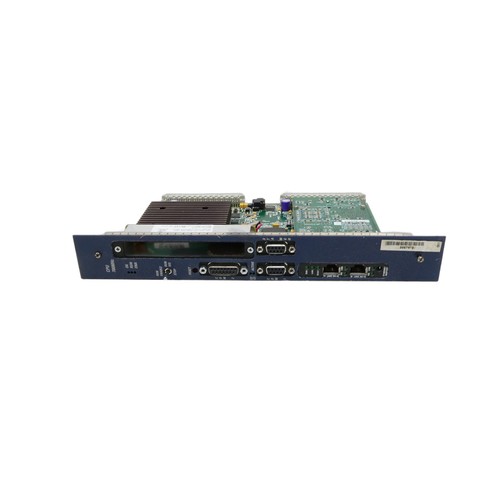

The GE Fanuc IC698CPE020-FL is a high-performance central processing unit belonging to the PACSystems RX7i family. This module is designed to handle large-scale integrated automation projects, offering a significant leap in processing power and memory capacity compared to legacy systems. Built on a standard VME64 backplane, it provides seamless migration for older Series 90-70 users while delivering the modern speed and Ethernet connectivity required for complex, data-intensive industrial environments.



Technical Datasheet

Processing Power and Memory The IC698CPE020-FL utilizes a high-speed Pentium III class microprocessor. This enables the execution of complex control logic and advanced floating-point calculations at exceptional speeds, significantly reducing scan times for large I/O configurations.

• Processor Speed: 700 MHz
• User Memory: 20 MB (Battery-backed RAM)
• Flash Memory: 20 MB (Non-volatile storage)
• Built-in Ports: Three serial ports and one 10/100 Mbps Ethernet station

Physical and Manufacturing Details

• Dimensions: 25.5 cm x 4.0 cm x 18.5 cm
• Weight: 0.95 kg
• Country of Origin: USA
• Module Slot Occupancy: Single slot (VME64)
• Power Consumption: 3.5 Amps at +5V DC



Application Fields

The IC698CPE020-FL is engineered for high-end applications, including:

• Infrastructure and Utilities: Managing regional water distribution networks and smart grid telemetry.
• Large-Scale Manufacturing: Coordinating synchronized robotics in automotive body shops.
• Mining and Minerals: Controlling heavy-duty crushing and conveyor systems in remote locations.
• Marine and Offshore: Power management and propulsion control for large vessels and oil platforms.



Product Usage Instructions

Installation of the IC698CPE020-FL should be performed in the dedicated CPU slot of an RX7i rack. Ensure that the rack power is disconnected before insertion to avoid electrical arcing. This module is programmed using GE’s Proficy Machine Edition software, which allows for configuration of the integrated Ethernet port and logic development in Ladder Diagram (LD) or Structured Text (ST). For long-term data retention, ensure the lithium battery is properly seated in the module faceplate. Regular firmware updates are recommended to maintain compatibility with the latest industrial communication protocols.

Frequently Asked Questions (Q&A)

Q: Is the IC698CPE020-FL compatible with Series 90-70 I/O modules? A: Yes, one of the primary advantages of the RX7i system is its ability to support and control existing Series 90-70 I/O modules, facilitating a cost-effective upgrade path.

Q: What does the “-FL” suffix represent? A: The “FL” usually denotes a specific firmware or hardware revision level that often includes enhanced fan-less cooling components or updated flash memory configurations.

Q: How many Ethernet connections can this CPU handle simultaneously? A: The built-in Ethernet port supports multiple simultaneous SRTP and Modbus TCP connections, though the exact number depends on the total data traffic and scan time requirements.
