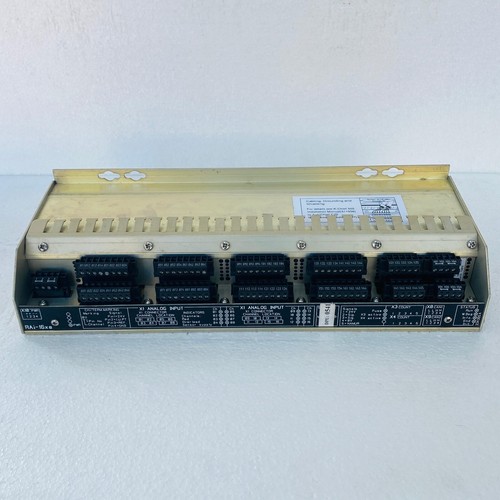

The Kongsberg RAi-16xe is a high-density analog acquisition module engineered for the K-Chief and AutoChief automation platforms. Designed to operate as a reliable remote I/O node, this module excels in converting diverse analog signals from field instrumentation into digital data for the process controller. Its robust construction makes it ideal for the demanding environmental conditions found in maritime and offshore industrial applications.



Product Overview and Technical Specifications

The RAi-16xe provides 16 independent channels, offering high resolution and precision for critical monitoring tasks. It is designed for seamless integration into Kongsberg’s redundant network architecture, ensuring high availability and fault tolerance.

Technical Datasheet

• Product Name: Kongsberg RAi-16xe Remote Analog Input Module
• Number of Channels: 16 Analog Inputs
• Input Types: 0-20 mA, 4-20 mA, 0-5 V, 0-10 V (Configurable)
• Dimensions: 145 mm x 45 mm x 115 mm
• Weight: 0.68 kg
• Country of Origin: Norway
• A/D Resolution: 16-bit
• Isolation: Galvanic isolation between field side and logic side

Application Fields

The Kongsberg RAi-16xe is predominantly used for comprehensive sensor monitoring in marine environments:

• Propulsion Systems: Monitoring fuel oil pressure, cooling water temperature, and lubricant levels.
• Cargo Management: High-precision data acquisition for pressure and temperature in liquefied gas or chemical tankers.
• Ballast Control: Sensing tank levels and valve positions across the vessel.
• Environmental Monitoring: Collecting data from exhaust gas sensors and meteorological instruments.



Product Instructions

Installation of the RAi-16xe should be conducted in a clean, dry environment, typically within an IP-rated enclosure. Mount the module securely onto a 35mm DIN rail. When wiring, utilize shielded twisted pair cables for all analog inputs to minimize electromagnetic interference. The module is usually powered via the backplane or a dedicated 24V DC supply; verify polarity before energizing. Configuration of input ranges (e.g., 4-20mA vs. 0-10V) is handled through the system’s engineering workstation software. Ensure the module’s address is correctly set to match the system configuration to permit successful communication with the central processing unit.



Q&A: Frequently Asked Questions

Q: Does the RAi-16xe support loop-powered sensors? A: Yes, the module can be configured to provide power to 2-wire transmitters, simplifying the field wiring requirements.

Q: How does the module handle a sensor failure? A: The RAi-16xe features advanced diagnostics that detect “out-of-range” signals (such as a wire break in a 4-20mA loop) and reports an error status to the main control system immediately.

Q: Can I mix different input types on the same module? A: While the hardware supports various standards, software configuration determines the input type. Typically, channels are configured in groups or individually depending on the specific firmware version in use.
