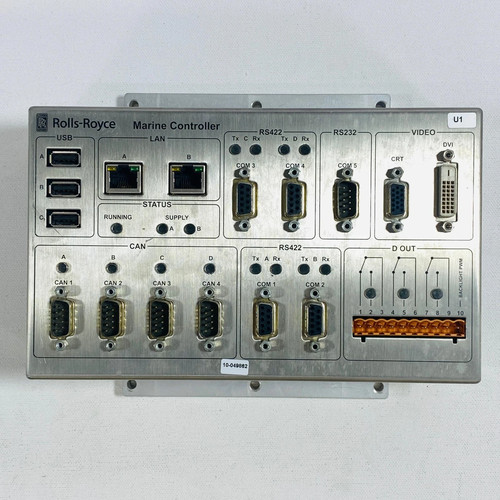

The Rolls Royce H1127.0101 is a specialized marine control module designed for high-precision management of shipboard propulsion systems. As a critical component within the Rolls Royce marine automation ecosystem, this controller is engineered to handle complex logic for thrusters, waterjets, and engine synchronization, ensuring optimal maneuverability and fuel efficiency.



Product Overview

This controller belongs to a series of ruggedized marine electronics built to withstand the extreme vibration, humidity, and temperature fluctuations common in engine rooms and bridge consoles. The H1127.0101 processes high-speed digital and analog inputs to command hydraulic or electric actuators, facilitating smooth transitions in vessel thrust and direction. Its redundant architecture and self-diagnostic capabilities make it a preferred choice for DP (Dynamic Positioning) rated vessels and high-speed ferries.



Technical Datasheet

General Specifications

• Product Name: Rolls Royce Marine Controller
• Model Number: H1127.0101
• Application: Propulsion & Thruster Control
• Input Voltage: 24V DC (18–32V Range)
• Processor: High-speed 32-bit RISC Industrial Processor
• Communication: Dual CAN-bus, RS-485, and Ethernet ports
• I/O Support: Configurable Analog (4-20mA/0-10V) and Digital (Opto-isolated)
• Operating Temperature: -25°C to +70°C
• Enclosure: Anodized aluminum housing, IP20/IP44 rated (mount dependent)
• Dimensions: 180mm x 140mm x 75mm
• Weight: 1.85 kg
• Country of Origin: Norway / United Kingdom



Application Fields

• Thruster Control Systems: Managing the pitch and azimuth of bow and stern thrusters.
• Waterjet Propulsion: Precise steering and reversing bucket control for high-speed craft.
• Main Engine Governance: Speed setpoint control and load sharing for marine diesel engines.
• Dynamic Positioning (DP): Interfacing with GPS and gyro-compass data to maintain vessel station-keeping.

Product Instructions

• Installation: Install the controller within a designated automation rack or console. Ensure the module is grounded to the ship’s hull through the provided earthing lug to minimize electrical interference.
• Fieldbus Wiring: Use high-quality shielded twisted-pair cables for CAN-bus connections. Ensure that termination resistors (120Ω) are correctly placed at both ends of the communication network.
• Programming: The Rolls Royce H1127.0101 is typically pre-loaded with application-specific firmware. Field adjustments to parameters should only be performed using the authorized Rolls Royce service tool software.
• Cooling: While designed for wide temperature ranges, ensure that the cabinet has adequate airflow to prevent localized heat buildup, which can reduce the lifespan of internal capacitors.



Q&A: Frequently Asked Questions

• Q: Can this controller be swapped with other H1127 variants?
  • A: While the hardware may look identical, the .0101 suffix often denotes specific I/O mapping or firmware. Always verify the software version before attempting a replacement.
• Q: What is the meaning of a solid red “ALARM” LED?
  • A: This indicates a fatal hardware error or a watchdog timer timeout. The controller will typically enter a fail-safe mode, freezing or centering all propulsion outputs.
• Q: Does it support remote diagnostics?
  • A: Yes, when connected to the ship’s satellite link via the Ethernet port, onshore technical support can often access diagnostic logs for troubleshooting.
• Q: Is the H1127.0101 Type Approved?
  • A: Yes, it is designed to meet the strict certification requirements of major maritime societies such as DNV, ABS, and Lloyd’s Register.



Recommended Similar Models

• Rolls Royce H1127.0201 Expansion I/O
• Rolls Royce A4500 Control Station
• Kongsberg RIO-211 Marine I/O
• Wartsila UNIC C2 Engine Controller
• ABB AC800M Marine Controller
