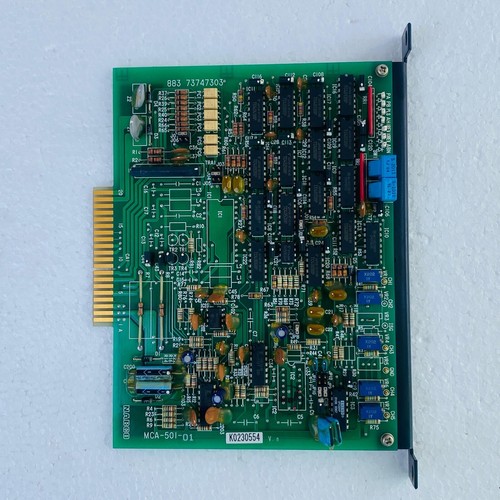

Nabco MCA-501-01 PCB Card | Precision C

The Nabco MCA-501-01 is a high-precision printed circuit board (PCB) designed for sophisticated control logic within industrial and marine automation systems. Often associated with Nabtesco’s specialized control suites, this card acts as a local processing node for sensor data and actuator commands. It is engineered to maintain high signal fidelity and operational stability under the vibration and temperature fluctuations common in heavy-duty environments, such as engine rooms and automated manufacturing floors.



Technical Specifications and Datasheet

The following specifications define the physical and functional parameters of the MCA-501-01 PCB card.

• Part Number: MCA-501-01
• Manufacturer: Nabco (Nabtesco)
• Dimensions (H x W x D): Approximately 220 mm x 150 mm x 25 mm
• Weight: 0.42 kg
• Country of Origin: Japan (JP)
• Input Voltage: 15V to 24V DC (system backplane dependent)
• Circuit Type: Multilayer PCB with surface-mount technology (SMT)
• Interface: Gold-plated edge connectors for enhanced conductivity
• Coating: Conformal coating for moisture and dust resistance



Application Fields

This PCB card is typically found in mission-critical control architectures, including:

• Marine Engine Control: Managing the logic for remote throttle positioning and propulsion synchronization.
• Pneumatic Sequence Control: Coordinating the timing and execution of complex air-driven mechanical movements.
• Braking Systems: Used in heavy-duty rail or industrial braking units to process feedback from safety sensors.
• Factory Automation: Serving as an interface card between field devices and a central supervisory controller.



Usage Instructions

To ensure the continued performance of the MCA-501-01, follow these maintenance and installation procedures:

1. ESD Protection: This board is populated with sensitive microelectronics. Before handling, ensure you are wearing a grounded anti-static wrist strap.
2. Installation Alignment: When inserting the card into a subrack or control box, ensure it is perfectly aligned with the guide rails. Forcing the board into a slot can damage the gold-plated edge connectors or the backplane pins.
3. Visual Inspection: Periodically check the board for signs of thermal stress (discoloration) or “creeping” corrosion, especially if used in maritime environments with high salt-air exposure.
4. Cleaning: If the board becomes dusty, use only moisture-free compressed air or an approved electronic contact cleaner. Do not use standard solvents which can degrade the conformal coating.

Common Questions and Answers (Q&A)

Q: Can the MCA-501-01 be swapped with the MCA-501-02? A: Not necessarily. While they may belong to the same series, the suffix “-01” and “-02” usually denote different hardware revisions or specific logic configurations. Always verify compatibility with your system’s technical manual.

Q: What is the primary cause of failure for these boards? A: In industrial settings, the most common failure points are power surges on the input lines or environmental degradation of the solder joints due to constant high-frequency vibration.

Q: Does this board require manual calibration? A: Most MCA-501-01 boards are factory-calibrated. However, if the board features onboard potentiometers (small dial screws), it may require fine-tuning to match the zero-point of the specific sensors it is connected to.

Q: Is the MCA-501-01 a programmable card? A: It generally contains pre-programmed logic within its micro-controllers. While parameters can often be adjusted via an external HMI, the core firmware is typically not field-programmable without specialized Nabco factory tools.
