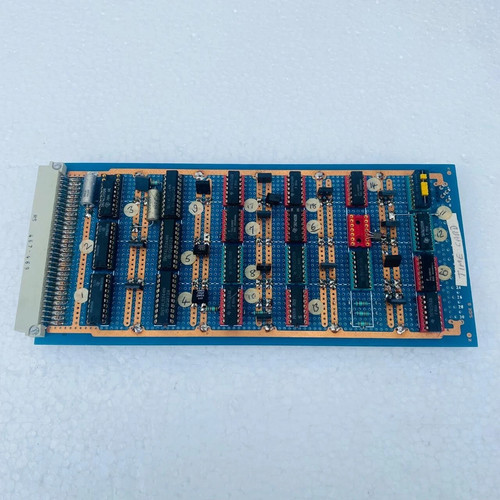

The RS Eurocard 434-352 is a high-quality, prototyping Printed Circuit Board (PCB) designed to the international Eurocard standard. It is specifically engineered for engineers and hobbyists to develop custom circuits that can be easily integrated into standard 19-inch rack systems or subrack enclosures.



Key Technical Specifications

• Format: Single Eurocard.
• Dimensions: 100mm \times 160mm.
• Grid Pitch: Standard 2.54mm (0.1 inch) hole spacing.
• Material: High-grade FR4 glass epoxy for superior mechanical strength and electrical insulation.
• Finish: High-quality tinned pads for easy soldering and oxidation resistance.

Functional Design

• Connector Compatibility: Designed to accept standard DIN 41612 connectors (typically Type B or C), which are the industry standard for rack-mounted electronics.
• Bus Tracks: Often features integrated power and ground rails (VCC/GND) running across the board to simplify power distribution for complex integrated circuits (ICs).
• Hole Pattern: Usually utilizes a “pad-per-hole” or “stripboard” layout, allowing for flexible component placement including DIP ICs, resistors, and capacitors.



Common Applications

• Industrial Prototyping: Creating custom interface cards for PLC expansion or industrial control sub-racks.
• Communication Systems: Building signal processing modules that require shielding within a metal rack.
• Testing & Measurement: Developing bespoke diagnostic tools that interface with existing backplane architectures.



Installation Guidelines

1. Connector Mounting: Align the DIN 41612 connector with the pre-drilled edge holes and solder firmly to ensure a reliable backplane connection.
2. Enclosure Fitting: This board fits standard 3U high subracks. Ensure card guides are aligned to prevent mechanical stress on the PCB.
3. Power Distribution: Utilize the dedicated perimeter tracks for power to minimize noise and simplify the wiring of logic gates or microcontrollers.
