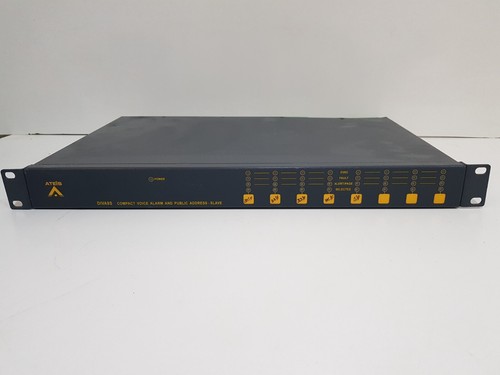

The ATEIS DIVA8S is a sophisticated, compact slave unit designed to expand the capacity of the DIVA8 voice alarm and public address system. It is fully compliant with international safety standards (EN 54-16, ISO 7240-16), making it a critical component for life safety installations, emergency broadcasting, and professional audio distribution in medium to large-scale facilities.



Product Specifications

Feature	Specification
Model	DIVA8S (Slave Unit)
Compatibility	Fully compatible with DIVA8 Master Controllers
Audio Channels	8 Zone Outputs (expandable via daisy-chaining)
Inputs	8 Local Audio Inputs (expandable)
Frequency Response	20 Hz – 20 kHz (+0/-3 dB)
Communication	ATEIS Net (RS485/Ethernet based)
Dimensions	482 mm x 88 mm x 360 mm (19″ Rack-mount, 2U)
Weight	Approx. 7.5 kg
Origin	Designed in Europe / Made to International Standards



Application Areas

The DIVA8S is ideal for environments where high-reliability audio and emergency evacuation are required:

• Large Commercial Complexes: Shopping malls and office buildings requiring multi-zone paging.
• Transportation Hubs: Airports, train stations, and metro systems needing clear, intelligible emergency messaging.
• Industrial Facilities: Factories and plants requiring integrated alarm systems and public address.
• Hospitality & Education: Hotels and universities needing automated background music and priority voice routing.



Product Usage Instructions

1. Rack Mounting: Install the unit in a standard 19-inch rack, ensuring proper ventilation (1U space above and below is recommended).
2. System Connection: Link the DIVA8S to the Master Controller (DIVA8M) using the provided digital audio bus cables. Ensure the daisy-chain address is set correctly via the front-panel display or software.
3. Zone Wiring: Connect zone loudspeakers to the 8 output channels. Ensure impedance matching is observed according to the amplifier power rating.
4. Configuration: Use the ATEIS Studio software to configure zone routing, emergency sequences, and priority logic for microphones and input sources.
5. Monitoring: The front panel displays active zone status, fault indicators, and signal levels. Regular health checks via software are recommended for EN 54-16 compliance.

Frequently Asked Questions (Q&A)

Q: Can the DIVA8S operate standalone without a Master?

A: No, the DIVA8S is a slave unit and requires a DIVA8 Master Controller to process audio routing, logic, and system-wide monitoring.

Q: Does it support remote monitoring?

A: Yes, through the ATEIS Net interface, the system status can be monitored remotely via a PC connected to the master controller.

Q: Is this system suitable for outdoor use?

A: The unit itself must be housed in a climate-controlled rack (indoor environment). However, it can drive outdoor-rated speakers if they are connected in accordance with local fire safety regulations.



Recommended Inventory

1. DIVA8S (8-Zone Slave Unit)
2. DIVA8M (Master Controller)
3. ATEIS-REM (Remote Paging Console)
4. ATEIS-RC (Remote Control Panel)
5. PS-12V (Backup Power Supply Module)
6. ATEIS-Net Interface Cable
7. 2U Rack Blanking Panel (for thermal management)
8. Speaker Line Monitoring Module (End-of-Line device)
9. Emergency Microphone (for Master unit)
10. ATEIS Studio Configuration Software Kit
