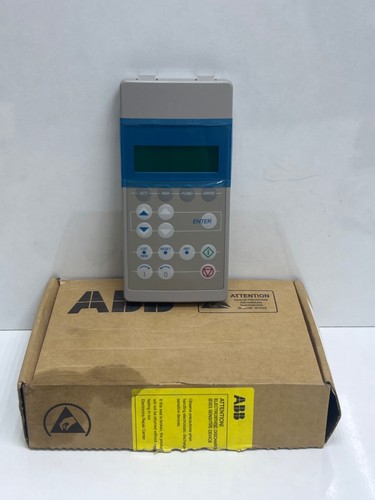

The ABB 61063404 CDP311 is a high-performance control panel and human-machine interface (HMI) designed primarily for use with ABB’s drive systems, including the ACS600, ACS800, and DCS series. This compact interface provides users with the ability to monitor, configure, and troubleshoot industrial drives directly from the cabinet door or remote mounted locations.



Technical Specifications

Feature	Specification
Part Number	61063404
Model	CDP311 Control Panel
Compatibility	ACS600, ACS800, DCS400, DCS500, DCS600
Display	LCD text-based (3 lines)
Dimensions	70 mm x 100 mm x 20 mm (approx.)
Weight	~0.15 kg
Origin	Finland / Estonia
Protection Rating	IP54 (when panel-mounted)



Application Areas

• Motor Control Centers (MCC): Standard interface for local drive start/stop and speed control.
• Drive Diagnostics: Real-time monitoring of motor current, torque, frequency, and DC bus voltage.
• Commissioning: Used to input motor data, set ramp times, and configure control parameters during startup.
• Troubleshooting: Displays fault codes and alarm descriptions to minimize downtime.



Product Usage Guide

1. Mounting: The CDP311 can be mounted directly onto the front of an ABB drive or externally using a panel mounting kit and a control cable.
2. Navigation: Use the keypad buttons to scroll through parameter groups, change values, and toggle between local (keypad) and remote (I/O/Fieldbus) control modes.
3. Parameter Editing: To modify a parameter, navigate to the “Parameters” menu, select the group and index, then press the Enter/Edit key to adjust the value.
4. Copying Parameters: You can use the control panel to upload parameters from one drive and download them to another, facilitating quick drive replacement.

Frequently Asked Questions (Q&A)

Q: Is the CDP311 interchangeable with other ABB control panels?

A: It is compatible with many legacy ACS and DCS series drives. However, newer drives may require modern panels like the ACS-AP-x. Always check your drive manual for specific model compatibility.

Q: What does a “Panel Loss” alarm mean?

A: This usually indicates a loose or damaged connection cable between the control panel and the drive unit. Check the RJ-45 connector and the control cable integrity.

Q: Can I use this panel to control multiple drives?

A: The panel is generally intended for one-to-one communication. For multi-drive management, fieldbus communication integrated into the drive’s control board is typically used.



Recommended Stock Inventory

Item No.	Part Number	Description
1	61063404	CDP311 Control Panel
2	3AUA0000064884	ACS-AP-I Assistant Control Panel
3	64605178	Panel Mounting Kit for CDP311
4	61176587	Control Cable (3m) for Remote Mounting
5	ACS800-01-XXXX	Drive Series Module
6	68257071	Battery for Real-Time Clock (if applicable)
7	64736780	RJ-45 Connector Interface Board
8	64736801	Door Mounting Platform
9	3ADW000194R0001	ACS800 Firmware Memory Unit
10	68258299	Replacement Gasket for Panel
