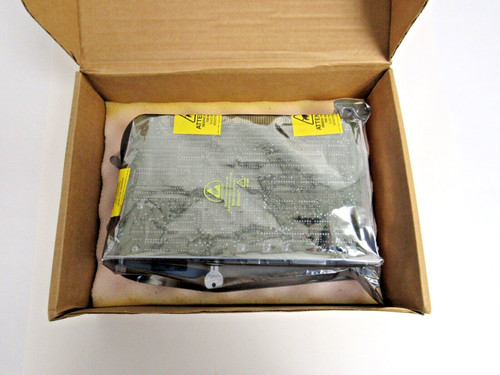

The Honeywell 9010-016C is a specialized Logic Processor unit designed for industrial control applications within the Honeywell IPC 620 series (or similar legacy automation platforms). This module serves as the “brain” of the controller, executing complex logic sequences, managing I/O data processing, and maintaining deterministic control timing for high-speed industrial manufacturing and process automation.



⚙️ Technical Specifications

🔹 Module Type: Logic Processor 🔹 Series Compatibility: Honeywell IPC 620 Series 🔹 Operating Temperature: 0°C to 60°C (32°F to 140°F) 🔹 Input Power: Typically 24V DC (Standard for IPC 620 rack-mount modules) 🔹 Mounting: Standard IPC 620 Chassis / Backplane 🔹 Status Indication: LED indicators for Power, Run/Halt, Fault, and Communication status

🌐 Communication Configuration

Configuring the 9010-016C requires direct interaction with the system’s programming environment:

1. Station Addressing: Use the rotary switches or software configuration parameters on the module’s faceplate to assign a unique station address for network communication.
2. Baud Rate Settings: Adjust the dip switches or software registers to match the communication baud rate of the existing PLC network (e.g., 9600, 19.2K, or 38.4K baud).
3. Port Setup: Define the communication port protocol (often proprietary Honeywell protocols) in the ladder logic configuration software to allow data exchange with remote I/O or HMI terminals.



⚡ Power-Up & Debugging Workflow

1. Hardware Verification: Ensure the processor is fully seated in the backplane slot. Confirm that the rack power supply is delivering the correct voltage range.
2. Initialization: Upon power-up, the module will perform a Power-On Self-Test (POST). Monitor the status LEDs—a stable green “Run” light indicates the processor is ready to execute logic.
3. Loading Logic: Connect the programming device via the communication port. Download the compiled ladder logic program from the workstation to the processor memory.
4. Fault Clearing: If the “Fault” LED is active, check the diagnostic registers in the programming software to identify error codes related to memory corruption, communication timeouts, or I/O module discrepancies.



✅ First-Time Operation Checklist

• Check that all backplane connectors are free of oxidation or debris.
• Ensure the battery (if applicable) is installed for CMOS memory retention.
• Confirm the CPU scan time is within the acceptable threshold for your application.
• Verify that all associated I/O modules are properly addressed and responding to the processor’s polling.
• Save a backup of the final verified program to a non-volatile storage medium.



❓ Common Questions & Answers

Q: What does a flashing “Fault” LED indicate? A: A flashing fault indicator often points to a scan time overflow, a watchdog timer trip, or a failure in the communication loop. Use the programming software to read the specific “Error Status Word.”

Q: Is this processor hot-swappable? A: Generally, no. Older architecture processors like the 9010-016C should be removed/replaced only after cutting power to the rack to avoid short-circuiting the backplane or damaging the module.

Q: How do I reset the module to factory defaults? A: A hard reset is typically performed by clearing the memory via the configuration software or, if supported, using a physical “Clear Memory” jumper found on the internal motherboard.
