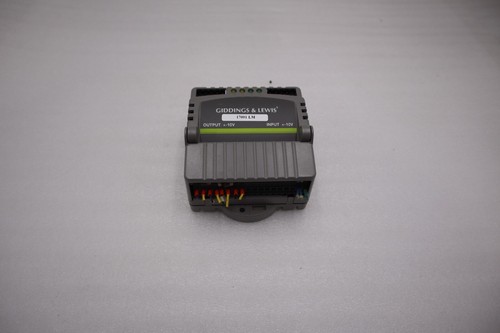

The Giddings & Lewis M.1301.4145 R0 is a specialized Input/Output (I/O) module designed for G&L industrial control systems. This module serves as a critical bridge between field-level devices—such as sensors, switches, and actuators—and the main programmable logic controller (PLC). It ensures high-speed, reliable data acquisition and signal distribution, making it an essential component for maintaining machine automation, precision motion control, and overall plant floor productivity.

⚙️ Technical Specifications

Feature	Specification
Model Number	M.1301.4145 R0
Component Type	PLC Input/Output Module
Compatibility	Giddings & Lewis Control Systems
I/O Type	Combined Digital Input/Output
Mounting	Rack/Chassis mounted
Dimensions	Standard G&L industrial module form factor
Weight	Approx. 0.5 kg
Country of Origin	USA



🛠️ Daily Maintenance

💡 Visual Verification: Check the module’s front panel indicator lights to confirm that active signals are being processed correctly.

💡 Terminal Security: Ensure that all wiring connected to the terminal blocks is secure. Vibrations in industrial environments can lead to loose connections over time.

💡 Environment Check: Keep the control cabinet clean and ensure internal cabinet fans are functional to prevent excessive dust accumulation or heat buildup.

💡 Signal Path Inspection: Routinely check for signs of frayed or heat-damaged insulation on field wiring attached to the module.



⚠️ Troubleshooting & Common Issues

🔧 I/O Channel Failure: If a specific input or output does not respond, swap the signal to an adjacent channel to verify if the failure is internal to the module or caused by field wiring.

🔧 Communication Interruption: Inspect the backplane connectors for bent pins or oxidation if the PLC reports a communication fault for this specific slot.

🔧 Unexpected State Changes: Check for “ghosting” signals caused by induced voltage from nearby high-voltage lines; ensure all shielded cables are properly grounded at the source.

🔧 Module Fault LED: If the fault light is illuminated, attempt a power cycle of the PLC rack. If the fault persists, it may indicate an internal hardware failure.



🛡️ Safety Precautions

🚫 Power Isolation: Always de-energize the PLC rack and field devices before inserting or removing the I/O module to prevent electrical arcing or damage to the backplane.

🚫 Static Sensitivity: These modules contain sensitive CMOS circuitry; always handle the board by the edges and use an anti-static wrist strap when performing maintenance.

🚫 Configuration Safety: Do not alter the PLC program logic while the machine is in operation, as this could lead to unintended mechanical movement or hazardous states.

🚫 Environment: Never operate the module in environments exceeding the specified temperature or humidity ranges, as this will drastically reduce the service life.



❓ Q&A Frequently Asked Questions

💬 Q: Is this module hot-swappable?

A: Generally, most G&L modules require the rack power to be off during removal/insertion to avoid shorting the backplane. Always refer to your specific PLC rack manual.

💬 Q: Can I use this module with third-party sensors?

A: Yes, as long as the sensor’s output voltage and current specifications match the input requirements of the module (typically 24V DC).

💬 Q: Why are the output lights flickering?

A: This usually indicates a rapid cycling of the logic program or a loose contact in the field circuit. Check your PLC logic and field terminal tightness.

💬 Q: Where can I find the pinout diagram for this module?

A: Technical schematics and wiring pinouts are available via the manufacturer’s archives or through the technical resource portal at dcsplcsystem.com.
