⚡ Product Introduction & Parameters

The Yokogawa NFCP100-S00 S3 is a high-performance central processing unit (CPU) module designed for the STARDOM FCN-100 (Field Control Node) series of autonomous controllers. It runs a real-time operating system and serves as a robust controller handling both sequence and analog control loops in distributed industrial environments. For related industrial automation parts and hardware solutions, you can explore dcsplcsystem. Below are key technical parameters for the device:

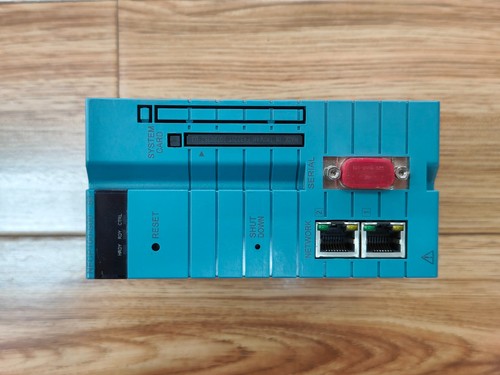

• Product Name: Yokogawa NFCP100-S00 S3 FCN CPU Module
• Processor Architecture: MMX-Pentium 166 MHz
• Main Memory: 128 MB with Error-Correcting Code (ECC)
• Static RAM (SRAM): 1 MB with ECC, backed up by a lithium battery
• Programming Standard: Compliant with IEC 61131-3 international standards and functions as a Java virtual machine
• Network Interfaces: 2 Ethernet ports (100/10 Mbps, 100BASE-TX or 10BASE-T, RJ45 modular jacks)
• Serial Port: 1 RS-232-C port (D-sub 9-pin, male)
• I/O & Bus Support: SB bus interface supporting duplex configurations
• RAS Features: Integrated watchdog timer, temperature monitor, and comprehensive self-diagnostics
• Enclosure & Cooling: Fanless design featuring low heat dissipation

🔌 Configuration & Network Installation Steps

• Base Module Insertion: Mount the NFCP100-S00 module into the designated CPU slot of an FCN base module (such as the NFBU200 long base or NFBU050 short base).
• Duplex Setup (Optional): For high-availability applications, install a paired secondary CPU module and configure redundant SB bus repeaters for a hot-standby 1+1 setup.
• Network Cabling: Connect the RJ45 Ethernet ports to the control network switches to establish plant-level communication and supervisory access.
• Software Engineering: Configure application logic, hardware tags, and network parameters using Yokogawa’s STARDOM engineering software environment adhering to IEC 61131-3 guidelines.

⚙️ Power-Up & Debugging Process

• Pre-Energization Check: Verify that the base module, power supply units, and backplane connections are securely locked and aligned correctly.
• System Power-Up: Apply nominal power to the control rack and observe the front-panel LED indicators (including 3 CPU status LEDs and 2 LAN status LEDs) to track initialization.
• Diagnostic Monitoring: Check system status logs through the engineering software tool to ensure that memory checks, firmware execution, and communication handshakes complete cleanly without active fault flags.

📋 Initial Run Checklist

• Redundancy Synchronization: If running a duplexed CPU arrangement, confirm that the control-side unit successfully synchronizes data over to the standby module.
• Memory & Battery Verification: Ensure the internal lithium battery is fully functional and SRAM backup registers report stable, error-free operation.
• I/O Responsiveness: Validate that field input/output data modules update cyclically across the local SB bus without packet dropouts.
• Thermal Checks: Confirm that ambient and module operating temperatures remain stable within the fanless natural convection limits.

🛠️ Routine Maintenance & Care

• Periodic Inspection: Inspect module locking tabs, backplane connector pins, and grounding points routinely during scheduled plant windows to prevent loosening from industrial vibration.
• Battery Replacement: Monitor the internal lithium battery voltage status and replace the battery cell periodically according to operational lifespan guidelines to preserve SRAM data.
• Dust and Debris Control: Ensure cabinet filters are kept clean to maintain unobstructed airflow around the rack housing.
• Firmware Lifecycle: Maintain offline backups of all controller project files and system configurations to allow rapid recovery during maintenance cycles.

❓ Frequently Asked Questions (Q&A)

• Can the NFCP100-S00 module be used in a redundant configuration? Yes, it supports dual-redundant (duplexed) CPU configurations when paired with a matching module and a compatible baseplate layout for uninterrupted operation.
• Does the CPU module require an active cooling fan? No, the module features a low-heat dissipation architecture that relies completely on passive, fanless cooling.
• What programming languages are supported by this controller? The controller supports programming languages fully compliant with the IEC 61131-3 international standard as well as Java-based execution environments.
