Product Introduction

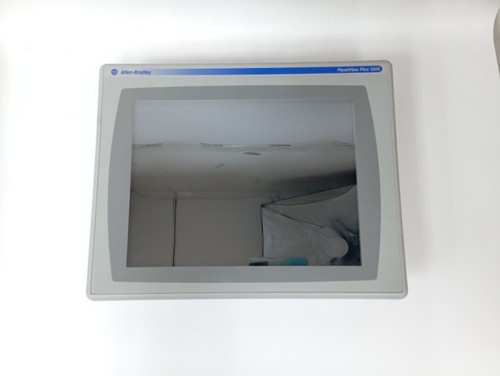

The Allen-Bradley 2711P-T15C4D2 is a high-performance Human-Machine Interface (HMI) terminal belonging to the PanelView Plus 1500 product line. Engineered for demanding industrial automation environments, it features a large, high-resolution color touchscreen display that bridges complex PLC logic and operator visualization, enabling real-time process monitoring, control, and system diagnostics.

Technical Datasheet & Parameters

Parameter Name	Specification Value
Manufacturer	Rockwell Automation / Allen-Bradley
Product Type	Operator Interface Terminal / HMI Module
Model Number	2711P-T15C4D2
Display Size	15.0 inches
Display Type	Color Active-Matrix TFT
Resolution	1024 × 768 pixels (18-bit color graphics)
Display Brightness	300 cd/m² (Nits)
Touchscreen Type	Analog Resistive
Input Voltage	18 to 32 V DC (24 V DC nominal)
Power Consumption	39 W typical (1.6 A) / 70 W peak (2.9 A)
Memory (RAM / Flash)	128 MB RAM / 128 MB Flash
Storage Expansion	Up to 512 MB CompactFlash
Communication Ports	Ethernet 10/100Base-T, RS-232 Serial, USB (Host/Device)
Real-Time Clock (RTC)	Battery-backed (approx. 4-year lifespan)
Product Weight	6.00 lbs (2.72 kg)
Certificate of Conformance (COC)	Available upon request



Initial Operation Checklist

• ⚡ Verify that the DC power supply input matches the nominal 18 to 32 V DC operational window prior to energizing.
• 🔧 Inspect all communication cables (Ethernet and RS-232 serial links) to ensure secure port retention and proper network configuration.
• ⚙️ Confirm that application runtime files and logic module memory allocations match the system requirements.
• 🔌 Check that USB peripherals or CompactFlash storage cards are properly seated if utilized for data logging or project transfers.



Routine Maintenance & Upkeep

• 👁️ Perform periodic visual checks on the front display surface and analog resistive touchscreen for contaminant buildup or scratches.
• 🔍 Inspect rear terminal blocks and power input wiring periodically for physical wear, dust accumulation, or looseness from vibration.
• 🔩 Ensure that panel mounting clamps and enclosure gaskets remain tightly sealed to maintain environmental protection ratings.
• 🧹 Keep the surrounding industrial enclosure clean and verify that internal cabinet temperatures stay within operational limits (0°C to +55°C).



Troubleshooting & Common Issues

• ⚠️ Terminal Fails to Power On: Check incoming 24V DC supply stability, verify external circuit protection, and inspect power terminal torque.
• 🔌 Communication Loss with PLC: Verify Ethernet or serial cable integrity, check IP address configurations, and confirm proper driver selection in the RSLinx enterprise communications setup.
• ⚙️ Touchscreen Unresponsive or Drifted: Perform a touchscreen calibration routine via the terminal configuration menu or clean resistive overlay boundaries.
• 🔥 Application Memory Errors: Check available internal storage or external CompactFlash capacity to ensure sufficient headroom for runtime logs and recipes.



Safety Precautions

• 🛑 Always disconnect and lock out external DC power sources before performing hardware installation, wiring adjustments, or module replacement tasks.
• 👷 Handling, configuration, and maintenance of this industrial interface must be restricted to qualified automation personnel.
• ⚡ Do not touch exposed terminal block connections or internal board traces while the unit is energized to prevent electrical shock hazards.
• 🚫 Ensure proper enclosure earth grounding in compliance with local and national electrical safety standards.



Frequently Asked Questions (Q&A)

💬 Q1: What communication options are natively supported by the 2711P-T15C4D2?

💡 A1: This standard configuration features an onboard Ethernet 10/100Base-T port, an RS-232 serial port, and USB ports for peripheral and data transfer flexibility.

💬 Q2: Can the display and logic components be separated or replaced independently?

💡 A2: Yes, the PanelView Plus 1500 system utilizes a modular design consisting of a display module, logic module, and communication adapter, allowing for flexible configuration and field replacement.

💬 Q3: What compliance documentation is available for this terminal?

💡 A3: Standard documentation, including the Certificate of Origin (COO) and Certificate of Conformance (COC), can be supplied upon request.
