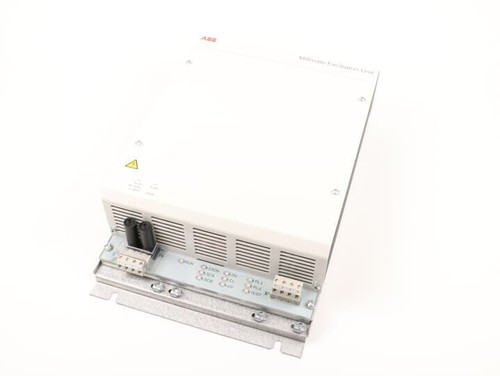

ABB PFVI401 3BSE032423R1 | High-Performance Excitation Unit Board

The ABB PFVI401 3BSE032423R1 is a critical electronic component designed for use within ABB’s synchronous motor and generator excitation systems. This unit plays a pivotal role in regulating the magnetic field of the rotor, ensuring stable voltage output and reactive power control for large-scale industrial machinery. Built to withstand the rigorous demands of power plants and heavy manufacturing facilities, the PFVI401 excels in high-speed signal processing and reliable power distribution, maintaining system synchronization even under fluctuating load conditions.

For more information on industrial control systems, visit the PFVI401 3BSE032423R1 product page.

Product Specifications (Datasheet)

General Parameters

• Product ID: 3BSE032423R1
• Model Type: PFVI401
• Device Type: Excitation Control Unit / Regulator Board
• Compatibility: ABB Unitrol series and specialized excitation frames
• Input Voltage: Standardized control voltage for excitation backplanes

Physical and Origin Data

• Dimensions: 230 mm x 160 mm x 25 mm
• Weight: 0.62 kg
• Country of Origin: Sweden
• Operating Temperature: -10°C to +60°C

Application Fields

This excitation unit is essential for managing synchronous machines in several key sectors:

• Power Generation: Regulation of hydro and thermal power plant generators.
• Oil & Gas: Control for large compressor motors and pumping stations.
• Chemical Processing: Synchronous motor management for high-capacity fans and mixers.
• Marine Engineering: Vessel propulsion systems and onboard power management.

Product Usage Instructions

1. Installation Environment: Install the PFVI401 in a clean, dry, and vibration-free cabinet. Ensure the rack is properly grounded to prevent electrical noise interference.
2. Module Insertion: Power down the system before inserting or removing the board. Align the board with the guide rails and press firmly until the connectors are fully seated.
3. Calibration: After installation, the unit may require parameter tuning via the ABB software interface to match the specific excitation characteristics of the motor or generator.
4. Maintenance: Periodically check for dust accumulation and ensure that all ribbon cable connections remain tight and free of oxidation.

Common Questions & Answers (Q&A)

Q: Does the PFVI401 3BSE032423R1 support redundant configurations? A: Yes, in many Unitrol systems, these boards are installed in pairs (Dual Channel) to provide automatic failover, ensuring the excitation system remains online if one unit fails.

Q: Can this unit be used for both brushless and static excitation? A: The PFVI401 is primarily designed as a control unit; its compatibility depends on the power bridge it is connected to. It is versatile enough to be configured for various excitation topologies.

Q: What is the typical lifespan of this board? A: With proper cooling and environmental control, these boards are designed for long-term industrial use, often exceeding 10-15 years of continuous operation.
