Description

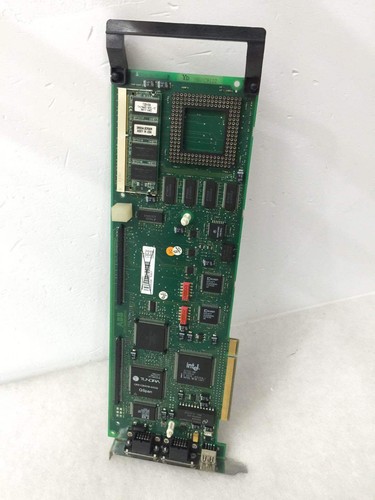

The ABB PU517 (3BSC980050R46) is a high-performance processor unit utilized within ABB’s Advant Controller 400 series. This module serves as the central processing intelligence for complex industrial automation tasks, handling logic execution, data processing, and communication between various I/O subsystems. Designed for high reliability in rugged environments, the PU517 ensures stable operation for critical infrastructure and large-scale manufacturing processes.
Product Specifications and Datasheet
- Model Number: PU517
- Product ID: 3BSC980050R46
- Module Type: Processor Unit / CPU Board
- Series: Advant Controller 400 (AC450 / AC410)
- Microprocessor: 32-bit high-speed processor
- Memory Configuration: Integrated RAM and Flash memory for application storage
- Communication Ports: RS-232, AF100 (via interface), and module bus connections
- Power Supply: 5 V DC (Internal Bus)
- Dimensions: 234 mm (Height) x 25 mm (Width) x 160 mm (Depth)
- Weight: 0.85 kg
- Country of Origin: Sweden
- Operating Temperature: 0 to +55 °C
Application Areas
The PU517 is a staple in large-scale Distributed Control Systems (DCS). Typical applications include:
- Power Generation: Managing turbine control and boiler automation in thermal and hydroelectric plants.
- Oil & Gas: Controlling offshore platforms and refinery processing units where high uptime is mandatory.
- Chemical Processing: Executing complex batch sequences and maintaining safety interlocks.
- Water Treatment: Coordinating large-scale filtration and distribution networks.
Product Operating Instructions
The PU517 should be installed into a dedicated slot within the Advant Controller subrack. Before installation, verify the jumper settings on the board correspond to the specific system configuration and memory addressing required for your AC400 setup. Ensure the system is powered down before inserting the module to prevent electrical surges. Once seated, the front-panel LED indicators will display the status: “Run” (Green) indicates normal operation, while “Fault” (Red) suggests a hardware or configuration error. Configuration and programming are performed using the ABB engineering toolset (such as Control Builder or AMPL).
Q&A: Frequently Asked Questions
Q1: Is the PU517 hot-swappable? A1: While the AC400 series supports various levels of redundancy, it is highly recommended to power down the specific subrack or follow strict redundancy switch-over procedures before removing the processor to avoid data corruption.
Q2: Can I upgrade a PU515 or PU516 to a PU517? A2: Yes, the PU517 is often used as a more powerful replacement for older units in the same series, but you must ensure your base software version supports the PU517 firmware.
Q3: How do I reset the module if the Fault LED is constant? A3: A hard reset can be performed via the front reset button; however, if the fault persists, it usually indicates a checksum error in the memory or a hardware component failure requiring professional repair.
Recommended Industrial Spare Parts
- ABB: DI810 3BSE008508R1 Digital Input 24V 16 ch
- Honeywell: 51402089-100 LCN Interface Board
- Bently Nevada: 3500/15 127610-01 Low Slot Power Supply
- Triconex: 3008 Main Processor High Degree of Availability
- Alstom: P343 Generator Protection Relay
- Emerson: VE3008 MQ Controller DeltaV
- ABB: AI810 3BSE008516R1 Analog Input 8 ch
- Honeywell: MC-TAMR03 80363969-150 Termination Assembly
- Bently Nevada: 3500/25 149369-01 Enhanced Keyphasor Module
- Triconex: 4351B TCM Communication Module
★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★
One year warranty, special discount after sale
The company focuses on DCS, PLC, robot, large servo four systems
The main products are all kinds of module/card, controller, touch screen, servo drive
The company's advantages: the supply of imported original products, professional production of accessories
Fast delivery time, complete supply, The seller has more than $1526000 worth of industrial control products inventory
We Can transport to the world！！！
——————————————————————————————————————
[service contact information]
Purchase and consultation hotline: +8613365909307 (Whatsapp/ Wechat)
E-mail: dcsplcsales@gmail.com
Contact Person: Simon
① 24-hour email reply (12 hours);
② For shipment to countries outside Asia, please contact the seller.
