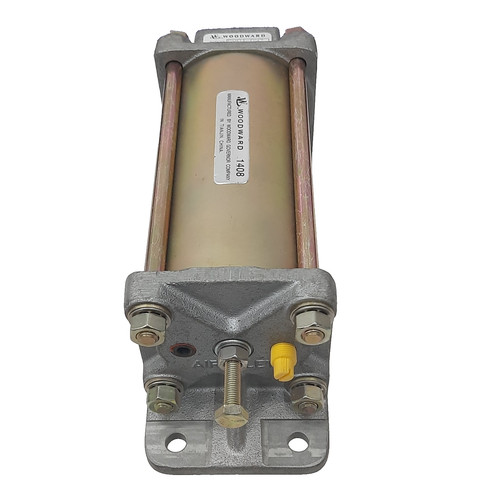

WOODWARD 8901-037 | Booster Servomotor

The WOODWARD 8901-037 is a precision-engineered hydraulic booster servomotor used primarily in industrial turbine and prime mover control systems. It acts as an interface between the low-power electrical output of a governor or digital controller and the high-force mechanical requirements of large turbine steam valves or heavy-duty fuel racks.

By utilizing high-pressure hydraulic fluid, this unit converts small electronic pilot signals into the powerful linear force required to move heavy mechanical linkages, ensuring fast, stable, and accurate control of the prime mover.

📋 Product Technical Datasheet

Specifications & Physical Dimensions

• Model Part Number: 8901-037
• Product Series: Hydraulic Booster / Servomotor
• Manufacturer: Woodward Governor Company
• Mounting Style: Flange-mount (typically directly to the turbine or engine frame)
• Hydraulic Medium: Turbine oil or synthetic hydraulic fluid (ISO 32/46 grades commonly used)
• Operating Pressure: Designed to function within high-pressure hydraulic headers (Verify specific bar/psi rating on the nameplate)
• Weight: ~15–20 kg (Application-dependent)
• Country of Origin: United States (USA)

Key Functionality

• Force Amplification: Transforms a low-energy input signal into a high-output mechanical force.
• Proportional Control: Provides smooth, continuous movement corresponding to the input signal, rather than simple “open/close” binary operation.
• Feedback Loop Integration: Often works in conjunction with a feedback rod or transducer to ensure the valve position precisely matches the controller command.

🏭 Target Application Fields

• Large Steam Turbine Valve Actuation: Directly driving the main steam admission valves on industrial and utility-grade turbines.
• Heavy-Duty Fuel Rack Positioning: Managing the massive fuel rack forces required for multi-cylinder large-bore diesel engines.
• Hydroelectric Gate Control: Adjusting needle valves or wicket gates in hydro power generation.
• Industrial Process Control: Operating large-scale dampeners or butterfly valves in high-torque process environments.

🚀 First-Time Operation Checklist

• System Flushing: Before final connection, ensure the hydraulic lines have been flushed according to ISO cleanliness standards to prevent pilot valve contamination.
• Bleeding Air: Upon initial startup, ensure all trapped air is bled from the servomotor piston chamber. Air pockets will cause spongy, oscillating valve movement.
• Linkage Alignment: The servomotor output rod must be perfectly aligned with the valve stem to prevent side-loading, which causes rapid wear on the seals.
• Pressure Verification: Verify the hydraulic header pressure meets the minimum requirements for the 8901-037 to achieve its rated force output.

🔧 Daily & Routine Maintenance

• Seal Leak Detection: Periodically check the rod seals for signs of “weeping.” A small amount of oil is normal, but visible drips indicate a seal kit replacement is imminent.
• Hydraulic Fluid Analysis: Sample the hydraulic oil every 6 months to check for particulate matter or moisture contamination, which can clog the precision pilot valve orifices inside the servomotor.
• Rod Lubrication: Keep the exposed portion of the actuator rod clean and lightly oiled to prevent oxidation or debris buildup from entering the seal housing.
• Linkage Inspection: Inspect rod-end bearings and clevis pins for signs of “slop” or wear. Any mechanical play will manifest as instability in the turbine speed control.

🛠 Troubleshooting & Diagnostics

• Valve “Hunting” or Oscillation: This is often caused by debris in the internal pilot valve. If the linkage is tight, the pilot valve may be sticking. Flush the system or rebuild the internal pilot section.
• Slow Response Time: This indicates a hydraulic pressure drop or restricted flow. Check the supply filter for clogs and verify that the header pump is maintaining full pressure.
• Inability to Hold Position: If the valve “drifts” while the controller is commanding a fixed position, the internal piston seals may be leaking internally.
• No Movement: Check if the pilot signal is reaching the servomotor. If there is no hydraulic pressure change in the pilot stage, the signal input linkage is likely disconnected or jammed.

⚠️ Essential Safety Precautions

• Stored Energy Hazard: Servomotors operate under high hydraulic pressure. Never loosen hydraulic lines while the system is pressurized. Ensure the header is depressurized and locked out before maintenance.
• Mechanical Pinch Points: When testing the servomotor, keep hands and tools away from the output linkage. These units can generate thousands of pounds of force.
• Fire Safety: Hydraulic fluid under pressure can spray and create an atomized mist that is highly flammable near hot steam pipes or engine exhausts. Ensure all fittings are tight and regularly inspected.

❓ Frequently Asked Questions (Q&A)

• Q: Can the 8901-037 be repaired in the field? A: Basic seal replacements and pilot valve cleanings are often done in-house by trained technicians; however, any internal cylinder honing or pilot valve re-calibration should be handled by a certified Woodward repair facility.
• Q: Why does this servomotor require high-purity oil? A: The internal pilot valves have extremely tight tolerances (measured in microns). Even microscopic particles can score the spool or cause the servomotor to “stick” in a mid-position.
• Q: How long do the internal seals typically last? A: Depending on hydraulic temperature and fluid cleanliness, internal seals typically have a service life of 3–5 years in continuous industrial operation.
